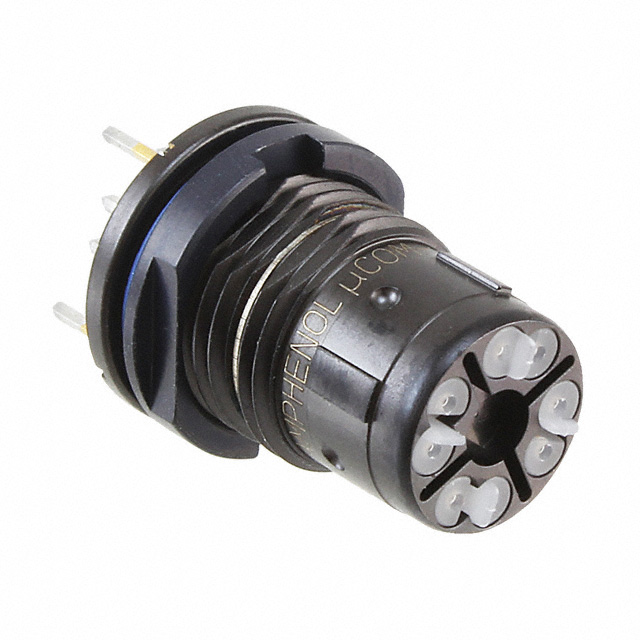

UCOM-10G+ RP B
ActiveAmphenol Socapex
CONN RCPT FMALE 8POS GOLD SOLDER
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | UCOM-10G+ RP B |
|---|---|
| Applications | Aviation, Marine, Military |
| Color | Black |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish - Mating | Gold |
| Contact Material | Brass |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Feature | Bulkhead - Front Side Nut |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 8 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Primary Material | Metal |
| Shell Finish | Black Nickel |
| Shell Material | Brass |
| Shell Size - Insert | 11 |
| Termination | Solder |
UCOM-10G+ Series
| Part | Number of Positions | Primary Material | Mounting Type | Applications | Features | Contact Material | Ingress Protection | Contact Finish - Mating | Connector Type | Fastening Type | Shell Material | Shell Size - Insert | Operating Temperature [Min] | Operating Temperature [Max] | Cable Opening [custom] | Cable Opening [custom] | Termination | Shell Finish | Color | Mounting Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Push-Pull Threaded | Brass | 11 | -55 °C | 125 °C | 0.295 in | 7.5 mm | Crimp | |||
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Push-Pull Threaded | Brass | 11 | -55 °C | 125 °C | 0.295 in | 7.5 mm | Crimp | Olive Drab Cadmium | Olive Drab | |
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Male Pins Plug | Brass | 11 | -55 °C | 125 °C | 0.295 in | 7.5 mm | Black Nickel | Black | |||
Amphenol Socapex | 8 | Metal | Panel Mount Through Hole | Aviation Marine Military | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Brass | 11 | -55 °C | 125 °C | Solder | Black Nickel | Black | Bulkhead - Front Side Nut | ||||
Amphenol Socapex | 8 | Metal | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Brass | 11 | -55 °C | 125 °C | Olive Drab Cadmium | Olive Drab | Bulkhead - Front Side Nut | |||||
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Push-Pull Threaded | Brass | 11 | -55 °C | 125 °C | Crimp | |||||
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Male Pins Plug | Brass | 11 | -55 °C | 125 °C | Crimp | Black Nickel | Black | ||||
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Male Pins Plug | Brass | 11 | -55 °C | 125 °C | 0.295 in | 7.5 mm | Crimp | ||||
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Push-Pull Threaded | Brass | 11 | -55 °C | 125 °C | 0.295 in | 7.5 mm | Olive Drab Cadmium | Olive Drab | ||
Amphenol Socapex | 8 | Metal | Free Hanging (In-Line) | Aviation Marine Military | Backshell | Brass | IP68 - Dust Tight Waterproof | Gold | Receptacle Female Sockets | Push-Pull Threaded | Brass | 11 | -55 °C | 125 °C | 0.295 in | 7.5 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 160.59 | |
| 10 | $ 148.81 | |||
| 25 | $ 143.46 | |||
| 50 | $ 142.39 | |||
Description
General part information
UCOM-10G+ Series
8 (Data) Position Circular Connector Receptacle, Female Sockets Solder
