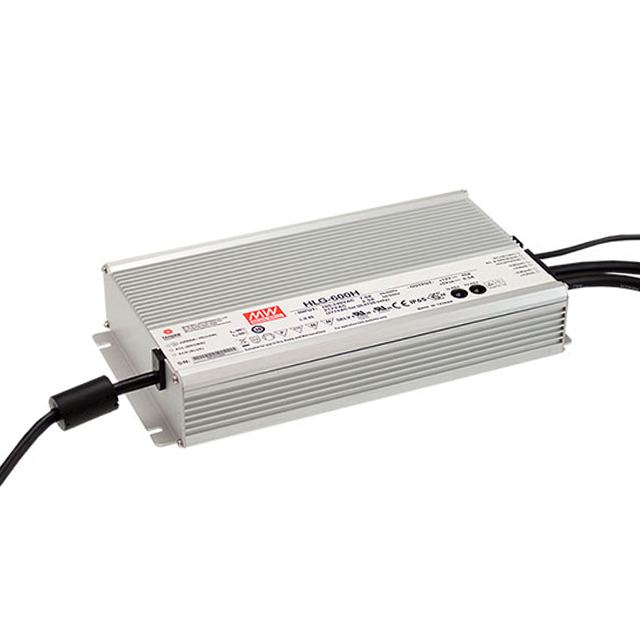

HLG-600H-12A
ActiveMEAN WELL USA Inc.
LED DVR CCCV ACDC 10.2-12.6V 40A
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HLG-600H-12A
ActiveMEAN WELL USA Inc.
LED DVR CCCV ACDC 10.2-12.6V 40A
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HLG-600H-12A |
|---|---|
| Approval Agency | CE, PSE, ENEC, CCC, CB, cURus |
| Current - Output (Max) [Max] | 40 A |
| Efficiency | 92.5 % |
| Features | OVP, OTP, OCP, Remote On/Off, SCP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 480 W |
| Ratings | IP65 |
| Size / Dimension [x] | 253.2 mm |
| Size / Dimension [x] | 9.97 in |
| Size / Dimension [y] | 144 mm |
| Size / Dimension [y] | 5.67 in |
| Size / Dimension [z] | 1.91 in |
| Size / Dimension [z] | 48.5 mm |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current, Voltage |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 90 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 12.6 V |
| Voltage - Output [Min] | 10.2 V |
HLG-600H Series
| Part | Ratings | Features | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output | Number of Outputs | Current - Output (Max) [Max] | Voltage - Isolation | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Voltage - Input (Min) [Min] | Power (Watts) | Approval Agency | Topology | Mounting Type | Efficiency | Voltage - Input (Max) [Max] | Type | Termination Style | Voltage - Output [Max] | Voltage - Output [Min] | Dimming |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
MEAN WELL USA Inc. | IP67 | OCP OTP OVP SCP | 90 °C | -40 °C | 24 V | 1 | 25 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 600 W | CB CCC CE cURus EAC ENEC KC PSE RCM TUV | AC DC Converter | Chassis Mount | 95 % | 305 VAC | Constant Current Voltage | Wire Leads | |||
MEAN WELL USA Inc. | IP67 | OCP OTP OVP SCP | 90 °C | -40 °C | 15 VDC | 1 | 36 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 540 W | CB CCC CE cURus EAC ENEC KC PSE RCM TUV | AC DC Converter | Chassis Mount | 93.5 % | 305 VAC | Constant Current Voltage | Wire Leads | |||
MEAN WELL USA Inc. | IP67 | OCP OTP OVP Remote On/Off SCP | 90 °C | -40 °C | 1 | 25 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 600 W | CB CCC CE cURus ENEC PSE | AC DC Converter | Chassis Mount | 95 % | 305 VAC | Constant Current Voltage | Wire Leads | 24 V | 12 V | Analog PWM | |
MEAN WELL USA Inc. | IP67 | OCP OTP OVP Remote On/Off SCP | 90 °C | -40 °C | 1 | 12.5 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 600 W | CB CCC CE cURus ENEC PSE | AC DC Converter | Chassis Mount | 96 % | 305 VAC | Constant Current Voltage | Wire Leads | 48 V | 24 V | Analog PWM | |
MEAN WELL USA Inc. | IP65 | OCP OTP OVP Remote On/Off SCP | 90 °C | -40 °C | 1 | 14.3 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 601 W | CB CCC CE cURus ENEC PSE | AC DC Converter | Chassis Mount | 96 % | 305 VAC | Constant Current Voltage | Wire Leads | 44.1 V | 35.7 V | ||
MEAN WELL USA Inc. | IP65 | OCP OTP OVP SCP | 90 °C | -40 °C | 54 V | 1 | 11.2 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 605 W | CB CCC CE cURus EAC ENEC KC PSE RCM TUV | AC DC Converter | Chassis Mount | 96 % | 305 VAC | Constant Current Voltage | Wire Leads | Analog PWM | ||
MEAN WELL USA Inc. | IP65 | OCP OTP OVP Remote On/Off SCP | 90 °C | -40 °C | 1 | 40 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 480 W | CB CCC CE cURus ENEC PSE | AC DC Converter | Chassis Mount | 92.5 % | 305 VAC | Constant Current Voltage | Wire Leads | 12.6 V | 10.2 V | ||
MEAN WELL USA Inc. | IP67 | OCP OTP OVP Remote On/Off SCP | 90 °C | -40 °C | 1 | 20 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 600 W | CB CCC CE cURus ENEC PSE | AC DC Converter | Chassis Mount | 95 % | 305 VAC | Constant Current Voltage | Wire Leads | 30 VDC | 15 V | Analog PWM | |
MEAN WELL USA Inc. | IP67 | OCP OTP OVP Remote On/Off SCP | 90 °C | -40 °C | 1 | 14.3 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 601 W | CB CCC CE cURus ENEC PSE | AC DC Converter | Chassis Mount | 96 % | 305 VAC | Constant Current Voltage | Wire Leads | 42 V | 21 V | Analog PWM | |
MEAN WELL USA Inc. | IP67 | OCP OTP OVP SCP | 90 °C | -40 °C | 54 V | 1 | 11.2 A | 3750 V | 144 mm | 1.91 in | 48.5 mm | 253.2 mm | 5.67 in | 9.97 in | 90 VAC | 605 W | CB CCC CE cURus EAC ENEC KC PSE RCM TUV | AC DC Converter | Chassis Mount | 96 % | 305 VAC | Constant Current Voltage | Wire Leads |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 247.35 | |
| 5 | $ 226.13 | |||
| 10 | $ 217.55 | |||
| 25 | $ 206.69 | |||
Description
General part information
HLG-600H Series
40A 10.2 ~ 12.6V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
