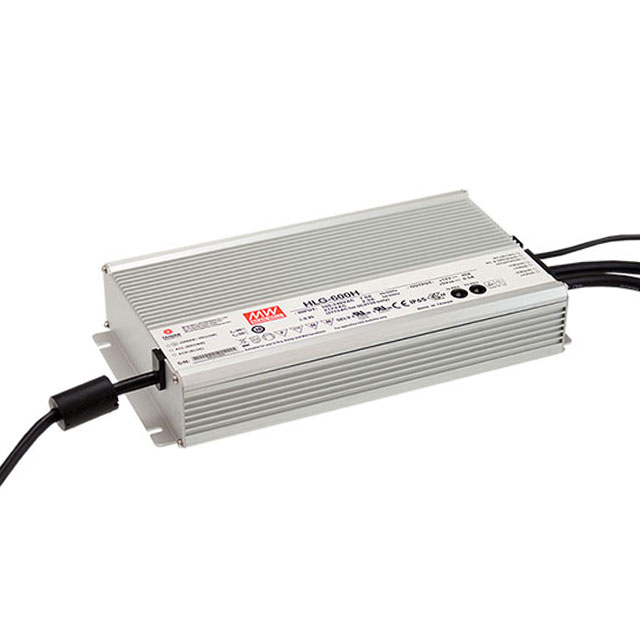

HLG-600H-54AB

Active

MEAN WELL USA Inc.

O/P +54V11.2A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HLG-600H-54AB

Active

MEAN WELL USA Inc.

O/P +54V11.2A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HLG-600H-54AB

Approval Agency	CB, CCC, PSE, CE, EAC, cURus, TUV, ENEC, RCM, KC
Current - Output (Max) [Max]	11.2 A
Dimming	Analog, PWM
Efficiency	96 %
Features	OTP, SCP, OVP, OCP
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	605 W
Ratings	IP65
Size / Dimension [x]	253.2 mm
Size / Dimension [x]	9.97 in
Size / Dimension [y]	144 mm
Size / Dimension [y]	5.67 in
Size / Dimension [z]	1.91 in
Size / Dimension [z]	48.5 mm
Termination Style	Wire Leads
Topology	AC DC Converter
Type	Constant Current, Voltage
Voltage - Input (Max) [Max]	305 VAC
Voltage - Input (Min) [Min]	90 VAC
Voltage - Isolation	3750 V
Voltage - Output	54 V

HLG-600H Series

Part	Ratings	Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Number of Outputs	Current - Output (Max) [Max]	Voltage - Isolation	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Voltage - Input (Min) [Min]	Power (Watts)	Approval Agency	Topology	Mounting Type	Efficiency	Voltage - Input (Max) [Max]	Type	Termination Style	Voltage - Output [Max]	Voltage - Output [Min]	Dimming
MEAN WELL USA Inc. HLG-600H-24	IP67	OCP OTP OVP SCP	90 °C	-40 °C	24 V	1	25 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	600 W	CB CCC CE cURus EAC ENEC KC PSE RCM TUV	AC DC Converter	Chassis Mount	95 %	305 VAC	Constant Current Voltage	Wire Leads
MEAN WELL USA Inc. HLG-600H-15	IP67	OCP OTP OVP SCP	90 °C	-40 °C	15 VDC	1	36 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	540 W	CB CCC CE cURus EAC ENEC KC PSE RCM TUV	AC DC Converter	Chassis Mount	93.5 %	305 VAC	Constant Current Voltage	Wire Leads
MEAN WELL USA Inc. HLG-600H-24B	IP67	OCP OTP OVP Remote On/Off SCP	90 °C	-40 °C		1	25 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	600 W	CB CCC CE cURus ENEC PSE	AC DC Converter	Chassis Mount	95 %	305 VAC	Constant Current Voltage	Wire Leads	24 V	12 V	Analog PWM
MEAN WELL USA Inc. HLG-600H-48B	IP67	OCP OTP OVP Remote On/Off SCP	90 °C	-40 °C		1	12.5 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	600 W	CB CCC CE cURus ENEC PSE	AC DC Converter	Chassis Mount	96 %	305 VAC	Constant Current Voltage	Wire Leads	48 V	24 V	Analog PWM
MEAN WELL USA Inc. HLG-600H-42A	IP65	OCP OTP OVP Remote On/Off SCP	90 °C	-40 °C		1	14.3 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	601 W	CB CCC CE cURus ENEC PSE	AC DC Converter	Chassis Mount	96 %	305 VAC	Constant Current Voltage	Wire Leads	44.1 V	35.7 V
MEAN WELL USA Inc. HLG-600H-54AB	IP65	OCP OTP OVP SCP	90 °C	-40 °C	54 V	1	11.2 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	605 W	CB CCC CE cURus EAC ENEC KC PSE RCM TUV	AC DC Converter	Chassis Mount	96 %	305 VAC	Constant Current Voltage	Wire Leads			Analog PWM
MEAN WELL USA Inc. HLG-600H-12A	IP65	OCP OTP OVP Remote On/Off SCP	90 °C	-40 °C		1	40 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	480 W	CB CCC CE cURus ENEC PSE	AC DC Converter	Chassis Mount	92.5 %	305 VAC	Constant Current Voltage	Wire Leads	12.6 V	10.2 V
MEAN WELL USA Inc. HLG-600H-30B	IP67	OCP OTP OVP Remote On/Off SCP	90 °C	-40 °C		1	20 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	600 W	CB CCC CE cURus ENEC PSE	AC DC Converter	Chassis Mount	95 %	305 VAC	Constant Current Voltage	Wire Leads	30 VDC	15 V	Analog PWM
MEAN WELL USA Inc. HLG-600H-42B	IP67	OCP OTP OVP Remote On/Off SCP	90 °C	-40 °C		1	14.3 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	601 W	CB CCC CE cURus ENEC PSE	AC DC Converter	Chassis Mount	96 %	305 VAC	Constant Current Voltage	Wire Leads	42 V	21 V	Analog PWM
MEAN WELL USA Inc. HLG-600H-54	IP67	OCP OTP OVP SCP	90 °C	-40 °C	54 V	1	11.2 A	3750 V	144 mm	1.91 in	48.5 mm	253.2 mm	5.67 in	9.97 in	90 VAC	605 W	CB CCC CE cURus EAC ENEC KC PSE RCM TUV	AC DC Converter	Chassis Mount	96 %	305 VAC	Constant Current Voltage	Wire Leads

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 210.90
		5	$ 200.90
		10	$ 192.00
		25	$ 186.50

Description

General part information

HLG-600H Series

11.2A 54V Constant Current, Voltage LED Driver AC DC Converter Topology 1 Output
