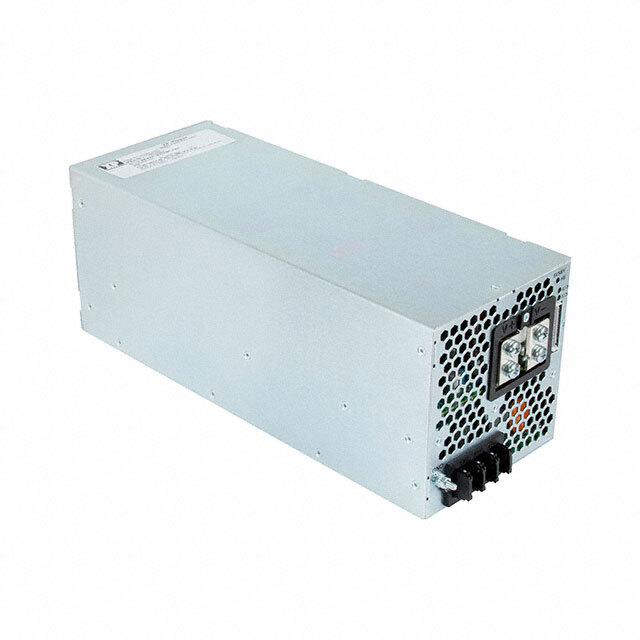

HPT5K0TS048

Active

XP POWER

AC/DC CONVERTER 48V 5000W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HPT5K0TS048

Active

XP POWER

AC/DC CONVERTER 48V 5000W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HPT5K0TS048

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE, TUV, UL
Current - Output 1	104 A
Efficiency	93 %
Features	Adjustable Output, Standby Output, Remote On/Off, PMBus™, Remote Sense
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	5000 W
Size / Dimension [x]	330.2 mm
Size / Dimension [x]	13 in
Size / Dimension [y]	127 mm
Size / Dimension [y]	5 "
Size / Dimension [z]	5 in
Size / Dimension [z]	127 mm
Standard Number	60950-1, 60601-1, 62368-1
Type	Enclosed
Voltage - Isolation	4000 V
Voltage - Output 1	48 V

HPT5K0 Series

Part	Applications	Voltage - Isolation	Current - Output 1	Mounting Type	Standard Number	Approval Agency	Type	Efficiency	Number of Outputs	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Output 1	Operating Temperature [Min]	Operating Temperature [Max]	Power (Watts)	Features	Size / Dimension [y]	Size / Dimension [z]
XP POWER HPT5K0TS060-L	ITE (Commercial) Medical	4000 V	83.3 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1	63.5 mm	254 mm	336.6 mm	2.5 in	13.25 in	10 in	60 V	-20 °C	70 °C	5000 W	Adjustable Output PMBus™ Remote On/Off Remote Sense Standby Output
XP POWER HPT5K0TS100	ITE (Commercial) Medical	4000 V	50 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1			330.2 mm	5 in	13 in	5 "	100 V	-20 °C	70 °C	5000 W	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output	127 mm	127 mm
XP POWER HPT5K0TS048	ITE (Commercial) Medical	4000 V	104 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1			330.2 mm	5 in	13 in	5 "	48 V	-20 °C	70 °C	5000 W	Adjustable Output PMBus™ Remote On/Off Remote Sense Standby Output	127 mm	127 mm
XP POWER HPT5K0TS060	ITE (Commercial) Medical	4000 V	83.3 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1			330.2 mm	5 in	13 in	5 "	60 V	-20 °C	70 °C	5000 W	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output	127 mm	127 mm
XP POWER HPT5K0TS200	ITE (Commercial) Medical	4000 V	25 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1			330.2 mm	5 in	13 in	5 "	200 V	-20 °C	70 °C	5000 W	Adjustable Output I2C Interface Load Sharing PMBus™ Remote On/Off Remote Sense Standby Output	127 mm	127 mm
XP POWER HPT5K0TS100-L	ITE (Commercial) Medical	4000 V	50 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1	63.5 mm	254 mm	336.6 mm	2.5 in	13.25 in	10 in	100 V	-20 °C	70 °C	5000 W	Adjustable Output PMBus™ Remote On/Off Remote Sense Standby Output
XP POWER HPT5K0TS200-L	ITE (Commercial) Medical	4000 V	25 A	Chassis Mount	60601-1 60950-1 62368-1	CB CE TUV UL	Enclosed	93 %	1	63.5 mm	254 mm	336.6 mm	2.5 in	13.25 in	10 in	200 V	-20 °C	70 °C	5000 W	Adjustable Output PMBus™ Remote On/Off Remote Sense Standby Output

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 2405.01
		5	$ 2332.86
		10	$ 2260.71
		25	$ 2164.51
		100	$ 2020.21

Description

General part information

HPT5K0 Series

Enclosed AC DC Converters 1 Output 48V 180 ~ 528 VAC (3 Phase) Input
