TBU-04-W1

Active

Adam Tech

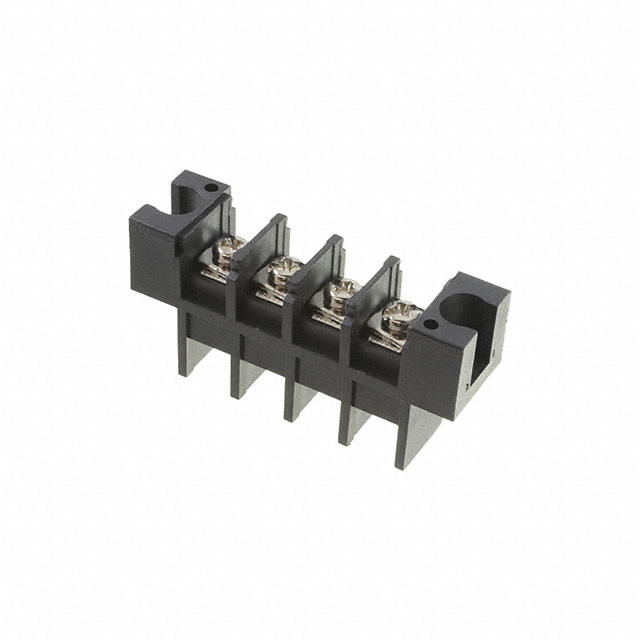

TERMINAL BLOCK, 4 POSITION

Search across all available documentation for this part.

Active

Adam Tech

TERMINAL BLOCK, 4 POSITION

Technical Specifications

Parameters and characteristics for this part

Specification	TBU-04-W1

Barrier Type	2 Wall (Dual)
Bottom Termination	Screw
Color	Black
Current Rating (Amps)	30 A
Features	Flange
Material - Insulation	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Panel, Chassis
Number of Circuits	4
Number of Rows	1
Number of Wire Entries	4
Operating Temperature [Max]	130 °C
Operating Temperature [Min]	-40 °C
Pitch [x]	11 mm
Pitch [x]	0.433 in
Terminal Block Type	Barrier Block
Terminal Screw Material	Steel
Top Termination	Screws with Captive Plate
Voltage Rating	300 VDC
Wire Gauge [Max]	22 AWG
Wire Gauge [Min]	10 AWG

Part	Mounting Type	Wire Gauge [Min]	Wire Gauge [Max]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Terminal Block Type	Barrier Type	Number of Circuits	Terminal Screw Material	Current Rating (Amps)	Material - Insulation	Number of Wire Entries	Pitch [x]	Pitch [x]	Top Termination	Bottom Termination	Voltage Rating	Features	Number of Rows	Terminal Screw Finish	Material Flammability Rating
Adam Tech TBU-04-W3-CC	Chassis Panel	6 AWG	14 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	65 A	Polybutylene Terephthalate (PBT)	4	0.63 in	16 mm	Screws	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W1	Chassis Panel	10 AWG	22 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	30 A	Polybutylene Terephthalate (PBT)	4	0.433 in	11 mm	Screws with Captive Plate	Screw	300 VDC	Flange	1		UL94 V-0
Adam Tech TBU-04-W2	Chassis Panel	8 AWG	22 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	50 A	Polybutylene Terephthalate (PBT)	4	0.512 in	13 mm	Screws with Captive Plate	Screw	600 V	Flange	1	Nickel	UL94 V-0
Adam Tech TBU-04-W3-CCS	Chassis Panel	6 AWG	14 AWG	Black	-40 °C	130 °C	Barrier Block	2 Wall (Dual)	4	Steel	65 A	Polybutylene Terephthalate (PBT)	4	0.63 in	16 mm	Screws	Screw	600 V	Flange	1	Nickel	UL94 V-0
