TBU-04-W3-CCS
ActiveAdam Tech

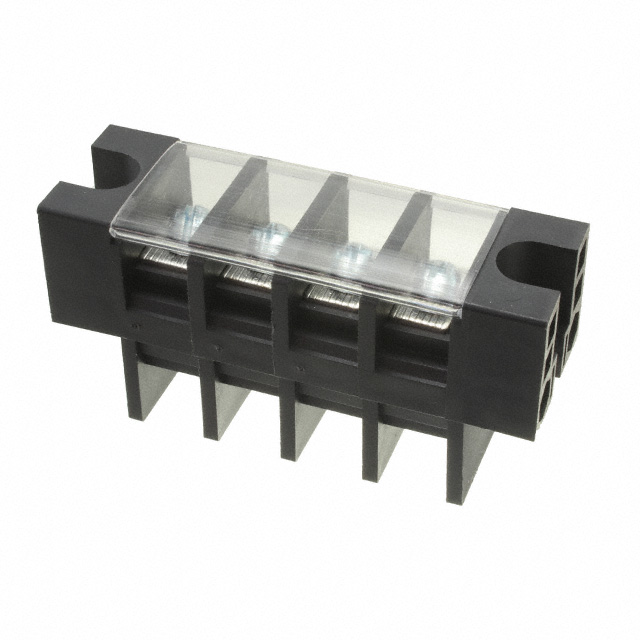

TERMINAL BLOCK, 4 POSITION
Deep-Dive with AI
Search across all available documentation for this part.
TBU-04-W3-CCS
ActiveAdam Tech
TERMINAL BLOCK, 4 POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TBU-04-W3-CCS |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Screw |
| Color | Black |
| Current Rating (Amps) | 65 A |
| Features | Flange |
| Material - Insulation | Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 4 |
| Number of Rows | 1 |
| Number of Wire Entries | 4 |
| Operating Temperature [Max] | 130 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.63 in |
| Pitch [x] | 16 mm |
| Terminal Block Type | Barrier Block |
| Terminal Screw Finish | Nickel |
| Terminal Screw Material | Steel |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 14 AWG |
| Wire Gauge [Min] | 6 AWG |
TBU-04 Series
| Part | Mounting Type | Wire Gauge [Min] | Wire Gauge [Max] | Color | Operating Temperature [Min] | Operating Temperature [Max] | Terminal Block Type | Barrier Type | Number of Circuits | Terminal Screw Material | Current Rating (Amps) | Material - Insulation | Number of Wire Entries | Pitch [x] | Pitch [x] | Top Termination | Bottom Termination | Voltage Rating | Features | Number of Rows | Terminal Screw Finish | Material Flammability Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Adam Tech | Chassis Panel | 6 AWG | 14 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 65 A | Polybutylene Terephthalate (PBT) | 4 | 0.63 in | 16 mm | Screws | Screw | 600 V | Flange | 1 | Nickel | UL94 V-0 |
Adam Tech | Chassis Panel | 10 AWG | 22 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 30 A | Polybutylene Terephthalate (PBT) | 4 | 0.433 in | 11 mm | Screws with Captive Plate | Screw | 300 VDC | Flange | 1 | UL94 V-0 | |
Adam Tech | Chassis Panel | 8 AWG | 22 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 50 A | Polybutylene Terephthalate (PBT) | 4 | 0.512 in | 13 mm | Screws with Captive Plate | Screw | 600 V | Flange | 1 | Nickel | UL94 V-0 |
Adam Tech | Chassis Panel | 6 AWG | 14 AWG | Black | -40 °C | 130 °C | Barrier Block | 2 Wall (Dual) | 4 | Steel | 65 A | Polybutylene Terephthalate (PBT) | 4 | 0.63 in | 16 mm | Screws | Screw | 600 V | Flange | 1 | Nickel | UL94 V-0 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 250 | $ 7.25 | |
Description
General part information
TBU-04 Series
4 Circuit 0.630" (16.00mm) Barrier Block Connector Screws
