MDF6-10DS-3.5C

Active

Hirose Electric USA, Inc.

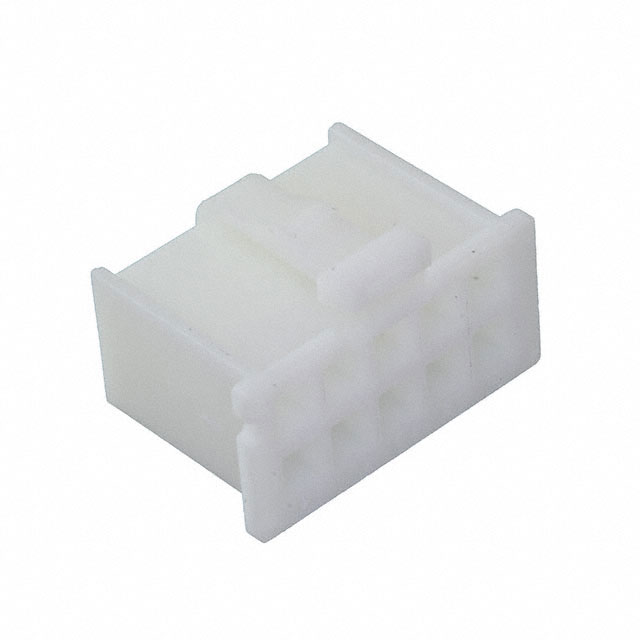

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, CRIMP TERMINAL, LOCKING, WHITE INSULATOR, SOCKET, ROHS COMPLIANT

Deep-Dive with AI

Search across all available documentation for this part.

MDF6-10DS-3.5C

Active

Hirose Electric USA, Inc.

BOARD CONNECTOR, 10 CONTACT(S), 2 ROW(S), FEMALE, STRAIGHT, CRIMP TERMINAL, LOCKING, WHITE INSULATOR, SOCKET, ROHS COMPLIANT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDF6-10DS-3.5C

Color	White
Connector Type	Socket
Contact Termination	Crimp
Contact Type	Female Socket
Fastening Type	Latch Lock
Insulation Material	Polyamide (PA), Nylon
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	10
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch [x]	3.5 mm
Pitch [x]	0.138 in
Row Spacing	5 mm
Row Spacing	0.197 in

MDF6 Series

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Number of Rows	Style	Number of Positions Loaded	Contact Material	Insulation Color	Shrouding	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	For Use With/Related Products	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Current Rating (Amps)	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Color	Row Spacing	Row Spacing	Contact Termination	Note	Pitch [x]	Pitch [x]	Number of Positions
Hirose Electric USA, Inc. MDF6-4DP-3.5DSA(05)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	4	13 mm	0.512 in	Tin-Copper	Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole	0.22 in	5.59 mm	Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VDC	5 mm	0.197 in
Hirose Electric USA, Inc. MDF6-TA2022HC																																20 AWG	22 AWG	Hand Crimper	Rectangular Contacts
Hirose Electric USA, Inc. MDF6-12DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	12	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-10DP-3.5DS(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	10	11.3 mm	0.445 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole Right Angle			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-4DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	4	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-20DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	20	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-18DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	18	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-6DP-3.5DSA(05)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	6	13 mm	0.512 in	Tin-Copper	Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole	0.22 in	5.59 mm	Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VDC	5 mm	0.197 in
Hirose Electric USA, Inc. MDF6-10DS-3.5C					Latch Lock			-30 ░C	85 °C	10				Socket	2						Free Hanging (In-Line)				Female Socket	Nylon Polyamide (PA)																White	5 mm	0.197 in	Crimp	Contacts Not Included	3.5 mm	0.138 in
Hirose Electric USA, Inc. MDF6-16DS-3.5C					Latch Lock			-30 ░C	85 °C					Socket	2						Free Hanging (In-Line)				Female Socket	Nylon Polyamide (PA)																White	5 mm	0.197 in	Crimp	Contacts Not Included	3.5 mm	0.138 in	16
