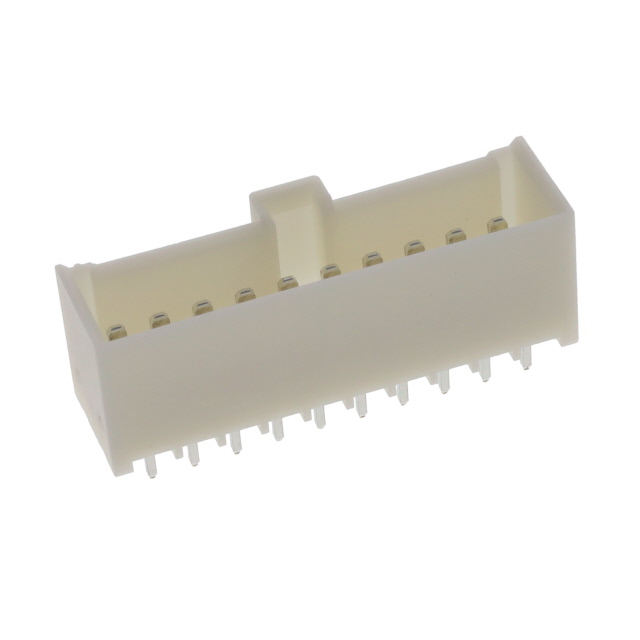

MDF6-20DP-3.5DSA(23)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 20POS 3.5MM

Deep-Dive with AI

Search across all available documentation for this part.

MDF6-20DP-3.5DSA(23)

Active

Hirose Electric USA, Inc.

CONN HEADER VERT 20POS 3.5MM

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MDF6-20DP-3.5DSA(23)

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Mating [custom]	0.22 in
Contact Length - Mating [custom]	5.6 mm
Contact Length - Post	3.5 mm
Contact Length - Post	0.138 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Insulation Color	White
Insulation Height	13 mm
Insulation Height	0.512 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	20
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-30 ░C
Pitch - Mating	0.138 in
Pitch - Mating	3.5 mm
Row Spacing - Mating	5 mm
Row Spacing - Mating	0.197 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	300 VAC

MDF6 Series

Part	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Termination	Fastening Type	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Insulation Height	Insulation Height	Contact Finish - Mating	Connector Type	Number of Rows	Style	Number of Positions Loaded	Contact Material	Insulation Color	Shrouding	Mounting Type	Contact Length - Mating	Contact Length - Mating	Contact Shape	Contact Type	Insulation Material	Contact Length - Post	Contact Length - Post	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Tool Type	For Use With/Related Products	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Current Rating (Amps)	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Color	Row Spacing	Row Spacing	Contact Termination	Note	Pitch [x]	Pitch [x]	Number of Positions
Hirose Electric USA, Inc. MDF6-4DP-3.5DSA(05)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	4	13 mm	0.512 in	Tin-Copper	Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole	0.22 in	5.59 mm	Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VDC	5 mm	0.197 in
Hirose Electric USA, Inc. MDF6-TA2022HC																																20 AWG	22 AWG	Hand Crimper	Rectangular Contacts
Hirose Electric USA, Inc. MDF6-12DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	12	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-10DP-3.5DS(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	10	11.3 mm	0.445 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole Right Angle			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-4DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	4	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-20DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	20	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-18DP-3.5DSA(23)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	18	13 mm	0.512 in		Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole			Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VAC	5 mm	0.197 in					1 çm	39.4 çin	Tin	Varies by Wire Gauge	0.22 in	5.6 mm
Hirose Electric USA, Inc. MDF6-6DP-3.5DSA(05)	UL94 V-0	1 µm	39.4 µin	Solder	Latch Holder	0.138 in	3.5 mm	-30 ░C	85 °C	6	13 mm	0.512 in	Tin-Copper	Header	2	Board to Cable/Wire	All	Brass	White	Shrouded - 4 Wall	Through Hole	0.22 in	5.59 mm	Square	Male Pin	Nylon Polyamide (PA)	3.5 mm	0.138 in	300 VDC	5 mm	0.197 in
Hirose Electric USA, Inc. MDF6-10DS-3.5C					Latch Lock			-30 ░C	85 °C	10				Socket	2						Free Hanging (In-Line)				Female Socket	Nylon Polyamide (PA)																White	5 mm	0.197 in	Crimp	Contacts Not Included	3.5 mm	0.138 in
Hirose Electric USA, Inc. MDF6-16DS-3.5C					Latch Lock			-30 ░C	85 °C					Socket	2						Free Hanging (In-Line)				Female Socket	Nylon Polyamide (PA)																White	5 mm	0.197 in	Crimp	Contacts Not Included	3.5 mm	0.138 in	16

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 2.29
		10	$ 1.99
		100	$ 1.78
		500	$ 1.48
		1000	$ 1.27
		5000	$ 1.13

Description

General part information

MDF6 Series

Connector Header Through Hole 20 position 0.138" (3.50mm)

Documents

Technical documentation and resources

No documents available
