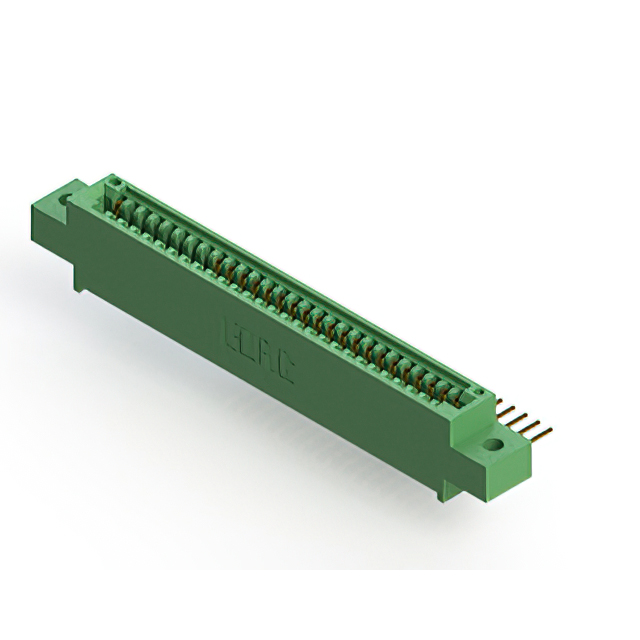

345-028-559-602
ActiveEDAC Inc.
CONN EDGE SINGLE FML 28POS 0.100
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
345-028-559-602
ActiveEDAC Inc.
CONN EDGE SINGLE FML 28POS 0.100
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 345-028-559-602 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | 3.25 mm |
| Flange Feature | 0.128 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 28 |
| Number of Positions/Bay/Row [custom] | 28 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Read Out | Single |
| Termination | Solder |
| Termination Rows | 1 |
345-028 Series
...
| Part | Gender | Color | Number of Rows | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Number of Positions/Bay/Row [custom] | Termination | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Read Out | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Contact Material | Flange Feature | Pitch [x] | Pitch [x] | Termination Rows | Features | Material - Insulation | Contact Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Solder | -40 °C | 105 ░C | Through Hole Right Angle | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 4-40 Flush Mount Threaded Insert Top Opening | 2.54 mm | 0.1 in | 1 | Card Guides | Polyester Thermoplastic | Cantilever | ||||
EDAC Inc. | Female | Green | 2 | Gold | 10 Áin | 0.25 Ám | 28 | 14 | Solder | -40 °C | 105 ░C | Through Hole | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Side Mount Opening Unthreaded | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Solder | -40 °C | 105 ░C | Through Hole | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Flush Mount Side Opening Unthreaded | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Cantilever | 3.25 mm | 0.128 " | |||
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Wire Wrap | -40 °C | 105 ░C | Through Hole | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Side Mount Opening Unthreaded | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Cantilever | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | Green | 2 | Gold | 10 Áin | 0.25 Ám | 28 | 14 | Wire Wrap | -40 °C | 105 ░C | Through Hole | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | 2 | Card Guides | Polyester Thermoplastic | Cantilever | ||||
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Solder | -40 °C | 105 ░C | Through Hole | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | 1 | Card Guides | Polyester Thermoplastic | Cantilever | ||||
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Solder | -40 °C | 105 ░C | Through Hole Right Angle | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Cantilever | 3.25 mm | 0.128 in | ||||
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Solder | -40 °C | 105 ░C | Through Hole Right Angle | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | Top Mount Opening Unthreaded | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Cantilever | 3.96 mm | 0.156 in | |||
EDAC Inc. | Female | Green | 1 | Gold | 10 Áin | 0.25 Ám | 28 | 28 | Wire Wrap | -40 °C | 105 ░C | Through Hole | Single | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | 1 | Polyester Thermoplastic | Cantilever | |||||
EDAC Inc. | Female | Green | 2 | Gold | 10 Áin | 0.25 Ám | 28 | 14 | Wire Wrap | -40 °C | 105 ░C | Through Hole | Dual | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Copper Alloy | 4-40 Threaded Insert Top Mount Opening | 2.54 mm | 0.1 in | 2 | Polyester Thermoplastic | Cantilever |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 25 | $ 12.78 | |
Description
General part information
345-028 Series
28 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green
