345-028-524-678

Active

EDAC Inc.

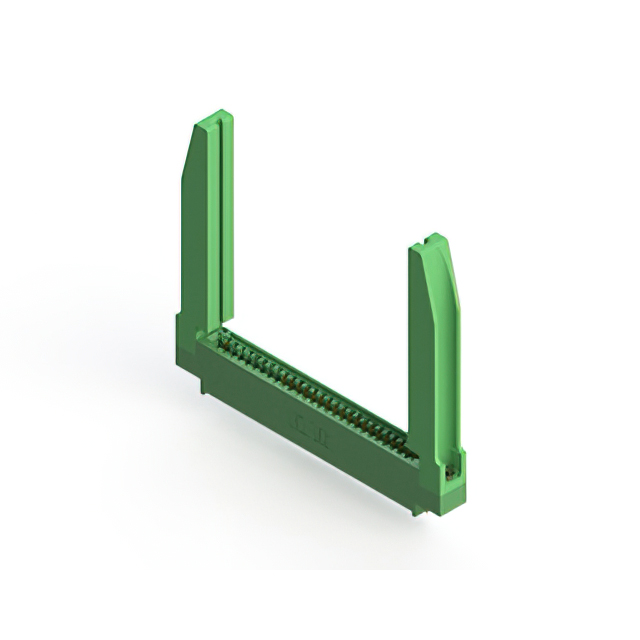

STANDARD CARD EDGE CONNECTORS .100" (2.54MM) PITCH CARD EDGE CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

345-028-524-678

Active

EDAC Inc.

STANDARD CARD EDGE CONNECTORS .100" (2.54MM) PITCH CARD EDGE CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	345-028-524-678

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	28
Number of Positions/Bay/Row [custom]	28
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Single
Termination	Solder
Termination Rows	1

345-028 Series

...

Part	Gender	Color	Number of Rows	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Number of Positions/Bay/Row [custom]	Termination	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Read Out	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Material	Flange Feature	Pitch [x]	Pitch [x]	Termination Rows	Features	Material - Insulation	Contact Type	Flange Feature	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 345-028-558-158	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Solder	-40 °C	105 ░C	Through Hole Right Angle	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	4-40 Flush Mount Threaded Insert Top Opening	2.54 mm	0.1 in	1	Card Guides	Polyester Thermoplastic	Cantilever
EDAC Inc. 345-028-521-512	Female	Green	2	Gold	10 Áin	0.25 Ám	28	14	Solder	-40 °C	105 ░C	Through Hole	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Side Mount Opening Unthreaded	2.54 mm	0.1 in	2		Polyester Thermoplastic	Cantilever	3.25 mm	0.128 in
EDAC Inc. 345-028-523-112	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Solder	-40 °C	105 ░C	Through Hole	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Flush Mount Side Opening Unthreaded	2.54 mm	0.1 in	1		Polyester Thermoplastic	Cantilever			3.25 mm	0.128 "
EDAC Inc. 345-028-544-612	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Wire Wrap	-40 °C	105 ░C	Through Hole	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Side Mount Opening Unthreaded	2.54 mm	0.1 in	1		Polyester Thermoplastic	Cantilever	3.25 mm	0.128 in
EDAC Inc. 345-028-544-578	Female	Green	2	Gold	10 Áin	0.25 Ám	28	14	Wire Wrap	-40 °C	105 ░C	Through Hole	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	2	Card Guides	Polyester Thermoplastic	Cantilever
EDAC Inc. 345-028-524-678	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Solder	-40 °C	105 ░C	Through Hole	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1	Card Guides	Polyester Thermoplastic	Cantilever
EDAC Inc. 345-028-559-602	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Solder	-40 °C	105 ░C	Through Hole Right Angle	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy		2.54 mm	0.1 in	1		Polyester Thermoplastic	Cantilever	3.25 mm	0.128 in
EDAC Inc. 345-028-558-604	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Solder	-40 °C	105 ░C	Through Hole Right Angle	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	Top Mount Opening Unthreaded	2.54 mm	0.1 in	1		Polyester Thermoplastic	Cantilever			3.96 mm	0.156 in
EDAC Inc. 345-028-541-408	Female	Green	1	Gold	10 Áin	0.25 Ám	28	28	Wire Wrap	-40 °C	105 ░C	Through Hole	Single	Non Specified - Single Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	1		Polyester Thermoplastic	Cantilever
EDAC Inc. 345-028-544-808	Female	Green	2	Gold	10 Áin	0.25 Ám	28	14	Wire Wrap	-40 °C	105 ░C	Through Hole	Dual	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Copper Alloy	4-40 Threaded Insert Top Mount Opening	2.54 mm	0.1 in	2		Polyester Thermoplastic	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.86

Description

General part information

345-028 Series

28 Position Female Connector Non Specified - Single Edge Gold 0.100" (2.54mm) Green

Documents

Technical documentation and resources
