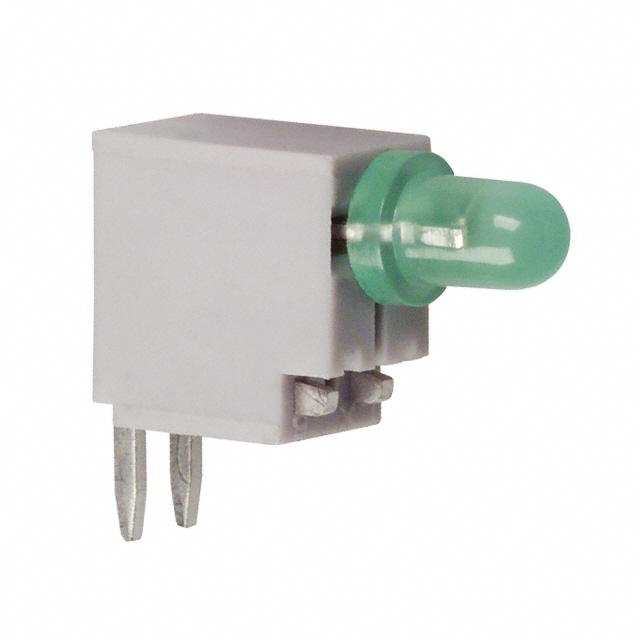

SSF-LXH4RAGD

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PCMNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH4RAGD

Active

Lumex Opto/Components Inc.

LED CBI 3MM GRN RA PCMNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH4RAGD

Color	Green
Configuration	Single
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	30 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Voltage Rating	2.1 V
Wavelength - Peak	565 nm

SSF-LXH4 Series

Part	Lens Type	Viewing Angle	Configuration	Wavelength - Peak	Lens Style	Color	Lens Size	Lens Size	Voltage Rating	Millicandela Rating	Mounting Type	Current
Lumex Opto/Components Inc. SSF-LXH4RA5LYD	Diffused Tinted	60 °	Single	585 nm	Round with Domed Top	Yellow	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RASBD	Diffused Tinted	60 °	Single	430 nm	Round with Domed Top	Blue	T-1	3 mm	4.5 V	25 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAYD	Diffused Tinted	60 °	Single	585 nm	Round with Domed Top	Yellow	T-1	3 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5GD-5V	Diffused Tinted	60 °	Single	565 nm	Round with Domed Top	Green	T-1 3/4	5 mm	5 V	15 mcd	Through Hole Right Angle	12 mA
Lumex Opto/Components Inc. SSF-LXH4RA5SRD	Diffused Tinted	60 °	Single	660 nm	Round with Domed Top	Red	T-1 3/4	5 mm	1.7 V	80 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5YD	Diffused Tinted	60 °	Single	585 nm	Round with Domed Top	Yellow	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAGD	Diffused Tinted	60 °	Single	565 nm	Round with Domed Top	Green	T-1	3 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5GD	Diffused Tinted	60 °	Single	565 nm	Round with Domed Top	Green	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5BID	Diffused Tinted		Single		Round with Domed Top	Red	T-1 3/4	5 mm			Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RABID	Diffused Tinted	60 °	Single	635 nm	Round with Domed Top	Red	T-1	3 mm		6 mcd	Through Hole Right Angle	6 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.10
		10	$ 0.70
		200	$ 0.52
		1000	$ 0.39
		5000	$ 0.36
		10000	$ 0.35

Description

General part information

SSF-LXH4 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Green Diffused, Tinted 2.1V 20mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
