SSF-LXH4RABID

Active

Lumex Opto/Components Inc.

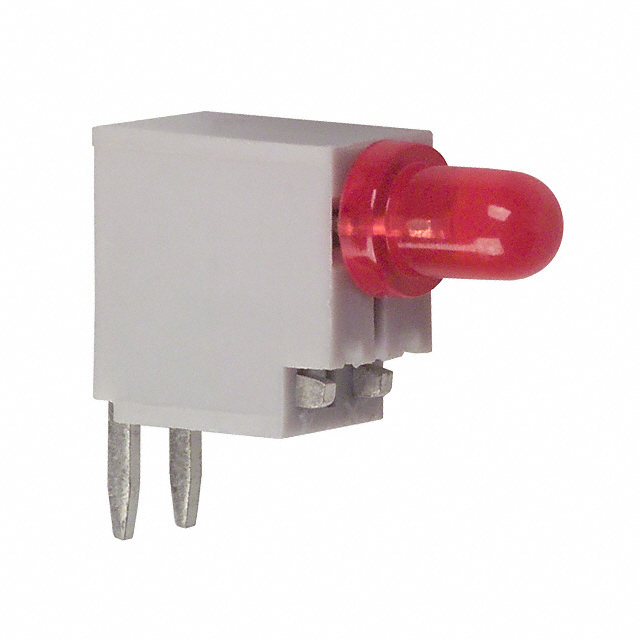

LED CBI 3MM RED RA PC MNT

Deep-Dive with AI

Search across all available documentation for this part.

SSF-LXH4RABID

Active

Lumex Opto/Components Inc.

LED CBI 3MM RED RA PC MNT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSF-LXH4RABID

Color	Red
Configuration	Single
Current	6 mA
Lens Size	3 mm
Lens Size	T-1
Lens Style	Round with Domed Top
Lens Type	Tinted, Diffused
Millicandela Rating	6 mcd
Mounting Type	Through Hole, Right Angle
Viewing Angle	60 °
Wavelength - Peak	635 nm

SSF-LXH4 Series

Part	Lens Type	Viewing Angle	Configuration	Wavelength - Peak	Lens Style	Color	Lens Size	Lens Size	Voltage Rating	Millicandela Rating	Mounting Type	Current
Lumex Opto/Components Inc. SSF-LXH4RA5LYD	Diffused Tinted	60 °	Single	585 nm	Round with Domed Top	Yellow	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RASBD	Diffused Tinted	60 °	Single	430 nm	Round with Domed Top	Blue	T-1	3 mm	4.5 V	25 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAYD	Diffused Tinted	60 °	Single	585 nm	Round with Domed Top	Yellow	T-1	3 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5GD-5V	Diffused Tinted	60 °	Single	565 nm	Round with Domed Top	Green	T-1 3/4	5 mm	5 V	15 mcd	Through Hole Right Angle	12 mA
Lumex Opto/Components Inc. SSF-LXH4RA5SRD	Diffused Tinted	60 °	Single	660 nm	Round with Domed Top	Red	T-1 3/4	5 mm	1.7 V	80 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5YD	Diffused Tinted	60 °	Single	585 nm	Round with Domed Top	Yellow	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RAGD	Diffused Tinted	60 °	Single	565 nm	Round with Domed Top	Green	T-1	3 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5GD	Diffused Tinted	60 °	Single	565 nm	Round with Domed Top	Green	T-1 3/4	5 mm	2.1 V	30 mcd	Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RA5BID	Diffused Tinted		Single		Round with Domed Top	Red	T-1 3/4	5 mm			Through Hole Right Angle
Lumex Opto/Components Inc. SSF-LXH4RABID	Diffused Tinted	60 °	Single	635 nm	Round with Domed Top	Red	T-1	3 mm		6 mcd	Through Hole Right Angle	6 mA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

SSF-LXH4 Series

LED Circuit Board Indicator LED Circuit Board Indicator Single Red Diffused, Tinted 3.5V 6mA Round with Domed Top 3mm, T-1 Through Hole, Right Angle

Documents

Technical documentation and resources

No documents available
