09628160398

Active

HARTING Technology Group

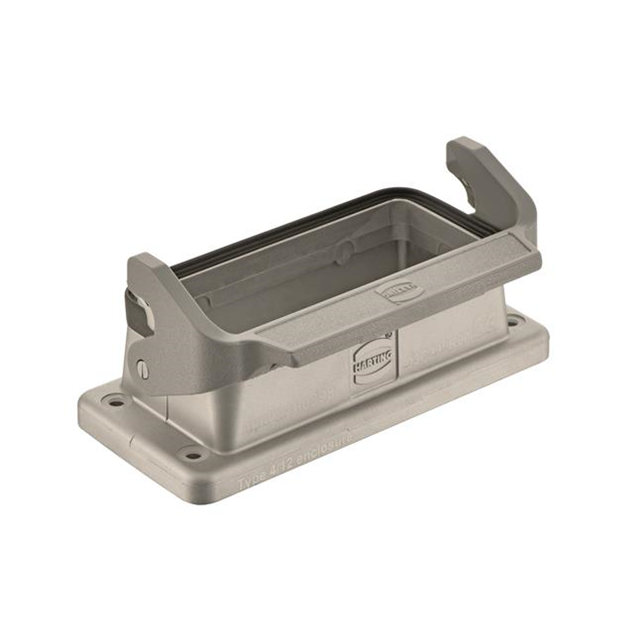

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM DIE-CAST, 1 LEVER, 16B

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, BASE, BULKHEAD MOUNT, ALUMINUM DIE-CAST, 1 LEVER, 16B

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Style	Size	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type
HARTING Technology Group 09628160392	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP66	118.5 mm	35.7 mm	4.665 in	1.406 "	2.126 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount
HARTING Technology Group 09628160801	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	93.5 mm	76 mm	3.681 "	2.992 in	1.693 in	43 mm	Aluminum Die Cast	125 °C	-40 °C	Hood
HARTING Technology Group 09628160398	Locking Clip (1) on Base Bottom	Bottom Entry	16 B	IP66	118.5 mm	35.7 mm	4.665 in	1.406 "	2.126 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount
HARTING Technology Group 09628160315	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP66	118.5 mm	35.7 mm	4.665 in	1.406 "	2.126 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount
HARTING Technology Group 09628160391	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	118 mm	30.4 mm	4.646 in	1.197 "	1.906 in	48.4 mm	Aluminum Die Cast	200 °C	-40 °C	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 16B IP66 - Dust Tight, Water Resistant
