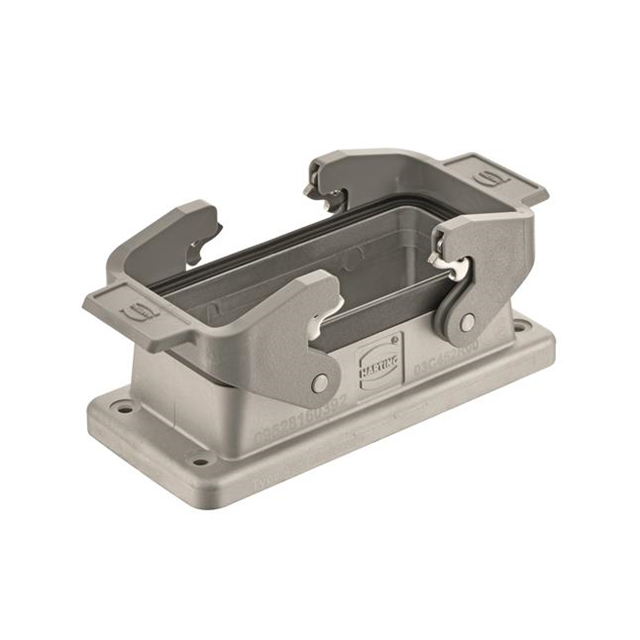

09628160392

Active

HARTING Technology Group

16B EMC BULKHEAD REAR FIT HOUSIN

Search across all available documentation for this part.

Active

HARTING Technology Group

16B EMC BULKHEAD REAR FIT HOUSIN

Technical Specifications

Parameters and characteristics for this part

Part	Lock Location	Style	Size	Ingress Protection	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Housing Material	Operating Temperature [Max]	Operating Temperature [Min]	Connector Type
HARTING Technology Group 09628160392	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP66	118.5 mm	35.7 mm	4.665 in	1.406 "	2.126 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount
HARTING Technology Group 09628160801	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	93.5 mm	76 mm	3.681 "	2.992 in	1.693 in	43 mm	Aluminum Die Cast	125 °C	-40 °C	Hood
HARTING Technology Group 09628160398	Locking Clip (1) on Base Bottom	Bottom Entry	16 B	IP66	118.5 mm	35.7 mm	4.665 in	1.406 "	2.126 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount
HARTING Technology Group 09628160315	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP66	118.5 mm	35.7 mm	4.665 in	1.406 "	2.126 in	54 mm	Aluminum Die Cast	125 °C	-40 °C	Base - Panel Mount
HARTING Technology Group 09628160391	Locking Clip (2) on Base Bottom	Bottom Entry	16 B	IP65 - Dust Tight Water Resistant	118 mm	30.4 mm	4.646 in	1.197 "	1.906 in	48.4 mm	Aluminum Die Cast	200 °C	-40 °C	Base - Panel Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Panel Mount Connector Bottom Entry 16B IP66 - Dust Tight, Water Resistant
