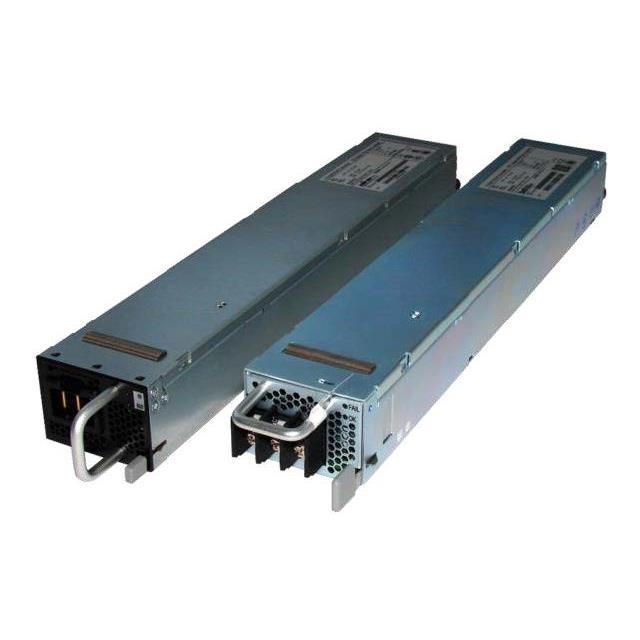

PFE1100-12-054ND

Active

EOS Power India Private Ltd

DC/DC POWER SUPPLY SINGLE-OUT 12V 90A 1080W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

DC/DC POWER SUPPLY SINGLE-OUT 12V 90A 1080W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output 2	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Output 1	Features	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Approval Agency	Power (Watts)	Current - Output 1	Voltage - Output 2	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
EOS Power India Private Ltd PFE1100-12-054RA	3.3 A	54.5 mm	14.28 "	2.15 "	40 mm	1.57 "	362.7 mm	Front End	12 V	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output	94 %	ITE (Commercial)	70 °C	0 °C	Rack Mount	2	90 VAC	264 VAC	62368-1	CE NEMKO	1100 W	90 A	5 V
EOS Power India Private Ltd PFE1100-12-054ND		54.5 mm	12.66 in	2.15 "	40 mm	1.57 "	321.5 mm	Front End	12 V			ITE (Commercial)	45 °C	0 °C	Rack Mount	1				CB CCC cCSAus CE CQC KC NEMKO	1100 W			72 V	90 A	40 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Front End DC DC Converter 1 Output 12V 90A 72V Input

Technical documentation and resources

No documents available
