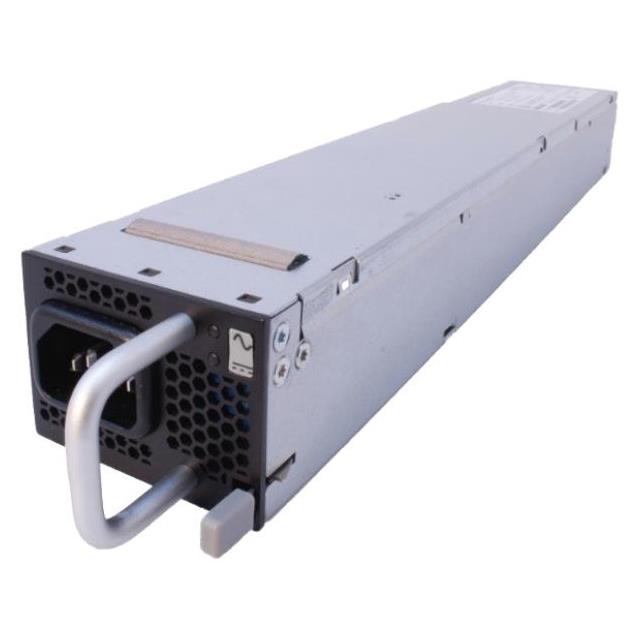

PFE1100-12-054RA

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 5V 1100W

Search across all available documentation for this part.

Active

EOS Power India Private Ltd

AC/DC CONVERTER 12V 5V 1100W

Technical Specifications

Parameters and characteristics for this part

Specification	PFE1100-12-054RA

Applications	ITE (Commercial)
Approval Agency	CE, NEMKO
Current - Output 1	90 A
Current - Output 2	3.3 A
Efficiency	94 %
Features	Remote On/Off, Standby Output, I2C Interface, PMBus™, Adjustable Output, Remote Sense, Load Sharing, PFC, Hot Swappable
Mounting Type	Rack Mount
Number of Outputs	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Power (Watts)	1100 W
Size / Dimension [x]	14.28 "
Size / Dimension [x]	362.7 mm
Size / Dimension [y]	54.5 mm
Size / Dimension [y]	2.15 "
Size / Dimension [z]	40 mm
Size / Dimension [z]	1.57 "
Standard Number	62368-1
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output 1	12 V
Voltage - Output 2	5 V

Part	Current - Output 2	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Type	Voltage - Output 1	Features	Efficiency	Applications	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Outputs	Voltage - Input [Min]	Voltage - Input [Max]	Standard Number	Approval Agency	Power (Watts)	Current - Output 1	Voltage - Output 2	Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]
EOS Power India Private Ltd PFE1100-12-054RA	3.3 A	54.5 mm	14.28 "	2.15 "	40 mm	1.57 "	362.7 mm	Front End	12 V	Adjustable Output Hot Swappable I2C Interface Load Sharing PFC PMBus™ Remote On/Off Remote Sense Standby Output	94 %	ITE (Commercial)	70 °C	0 °C	Rack Mount	2	90 VAC	264 VAC	62368-1	CE NEMKO	1100 W	90 A	5 V
EOS Power India Private Ltd PFE1100-12-054ND		54.5 mm	12.66 in	2.15 "	40 mm	1.57 "	321.5 mm	Front End	12 V			ITE (Commercial)	45 °C	0 °C	Rack Mount	1				CB CCC cCSAus CE CQC KC NEMKO	1100 W			72 V	90 A	40 V
