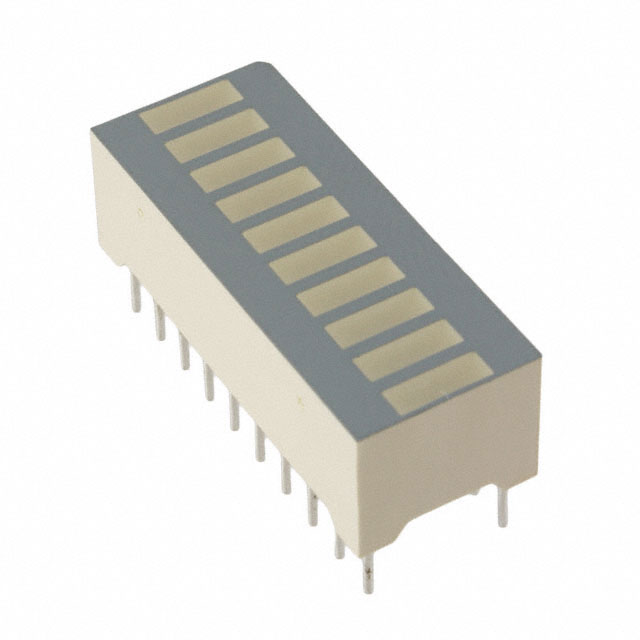

DC10GWA

Active

Kingbright

LED CBI BAR GRAPH 10-SEG GRN TH

Search across all available documentation for this part.

Active

Kingbright

LED CBI BAR GRAPH 10-SEG GRN TH

Technical Specifications

Parameters and characteristics for this part

Part	Voltage Rating	Lens Type	Mounting Type	Millicandela Rating	Wavelength - Peak	Color	Configuration	Configuration	Current	Lens Size [x]	Lens Size [y]	Lens Style
Kingbright DC10EWA	2 V	Diffused White	Through Hole	9 mcd	627 nm	Red (x 10)	10 Wide	Bar DIP	30 mA
Kingbright DC10SYKWA	2 V	Diffused White	Through Hole	36 mcd	590 nm	Yellow	10 Wide	Bar DIP	175 mA	5.08 mm	1.78 mm	Rectangle with Flat Top
Kingbright DC10SURKWA	1.95 V	Diffused White	Through Hole	25 mcd	645 nm	Red (x 10)	10 Wide	Bar DIP		5.08 mm	1.78 mm	Rectangle with Flat Top
Kingbright DC10GWA		Diffused White	Through Hole	3.9 mcd	565 nm	Green (x 10)	10 Wide	Bar DIP	25 mA
Kingbright DC10YWA	2.1 V	Diffused White	Through Hole	9 mcd	590 nm	Yellow	10 Wide	Bar DIP	30 mA	5.08 mm	1.78 mm	Rectangle with Flat Top
Kingbright DC10CGKWA	2.1 V	Diffused White	Through Hole	8 mcd		Green (x 10)	10 Wide	Bar DIP	150 mA	5.08 mm	1.78 mm	Rectangle with Flat Top
Kingbright DC10SRWA	1.85 V	Diffused White	Through Hole	30 mcd	660 nm	Red (x 10)	10 Wide	Bar DIP	30 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 10) Diffused, White 2.2V 25mA Through Hole
