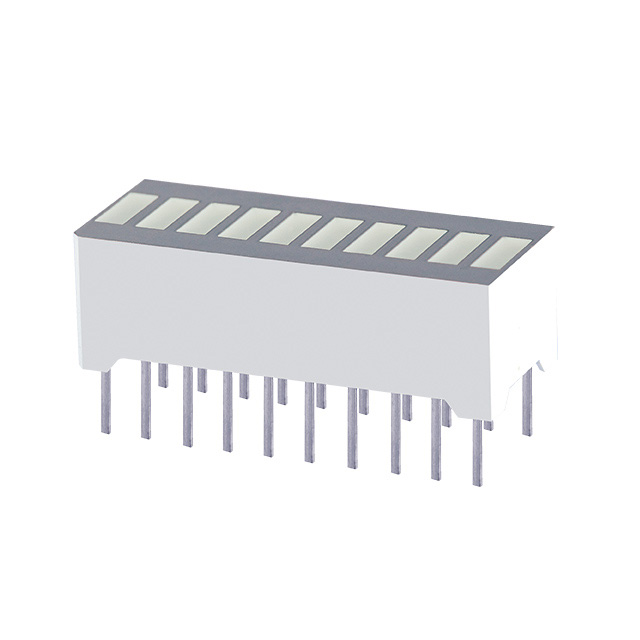

DC10CGKWA
ActiveKingbright
LED CBI 5.08X1.78MM 10SEG G VERT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DC10CGKWA
ActiveKingbright
LED CBI 5.08X1.78MM 10SEG G VERT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DC10CGKWA |
|---|---|
| Color | Green (x 10) |
| Configuration | 10 Wide |
| Configuration | DIP, Bar |
| Current | 150 mA |
| Lens Size [x] | 5.08 mm |
| Lens Size [y] | 1.78 mm |
| Lens Style | Rectangle with Flat Top |
| Lens Type | Diffused, White |
| Millicandela Rating | 8 mcd |
| Mounting Type | Through Hole |
| Voltage Rating | 2.1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 3.20 | |
| 20 | $ 2.26 | |||
| 100 | $ 1.85 | |||
| 500 | $ 1.56 | |||
| 1000 | $ 1.43 | |||
| 2000 | $ 1.37 | |||
| 5000 | $ 1.35 | |||
Description
General part information
DC10 Series
LED Circuit Board Indicator LED Circuit Board Indicator Bar - 10 Wide, DIP Green (x 10) Diffused, White 2.1V 150mA Rectangle with Flat Top 5.08mm x 1.78mm Through Hole
