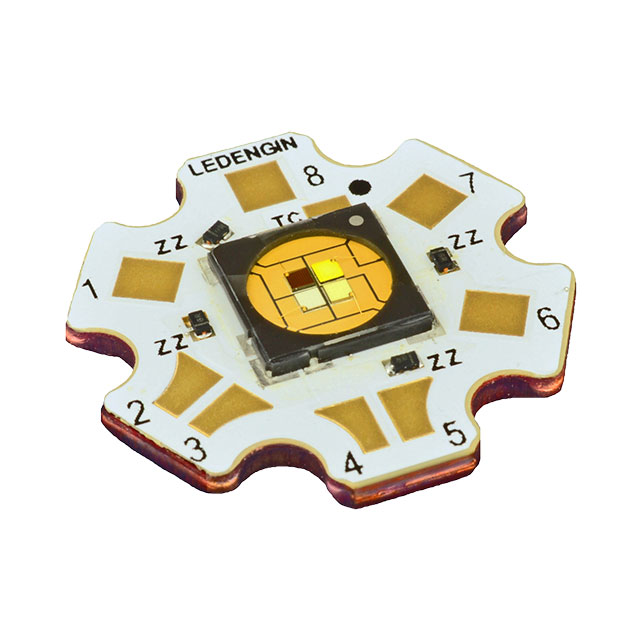

LZ4-V4MDPB-0000
Obsoleteams-OSRAM USA INC.
LED MOD LUXIGEN STARBRD 6335K
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LZ4-V4MDPB-0000
Obsoleteams-OSRAM USA INC.
LED MOD LUXIGEN STARBRD 6335K
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LZ4-V4MDPB-0000 |
|---|---|
| CCT (K) | 6335 K |
| Color | White, Green, Red, Blue |
| Configuration | Starboard |
| Current - Max | 3 A, 2.5 A, 3 A, 3 A |
| Current - Test | 1 A, 1 A, 1 A, 1 A |
| Height [z] | 2.66 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [x] | 7 mm |
| Light Emitting Surface (LES) [y] | 7 mm |
| Lumens/Watt @ Current - Test | 48 lm/W, 98 lm/W, 63 lm/W |
| Luminous Flux @ Current/Temperature [custom] | 115 lm |
| Luminous Flux @ Current/Temperature [custom] | 220 lm |
| Luminous Flux @ Current/Temperature [custom] | 293 lm |
| Luminous Flux @ Current/Temperature [custom] | 1250 mW |
| Size / Dimension [diameter] | 19.9 mm |
| Type | LED Module |
| Viewing Angle | 110 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.5 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.4 V |
| Wavelength | 525nm Green, 624nm Red, 454nm Blue |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
LZ4-V4 Series
LED Lighting COBs Engines Modules LED Module LuxiGen™ LZ4 Red, Green, Blue, White - Cool (RGBW) Starboard
