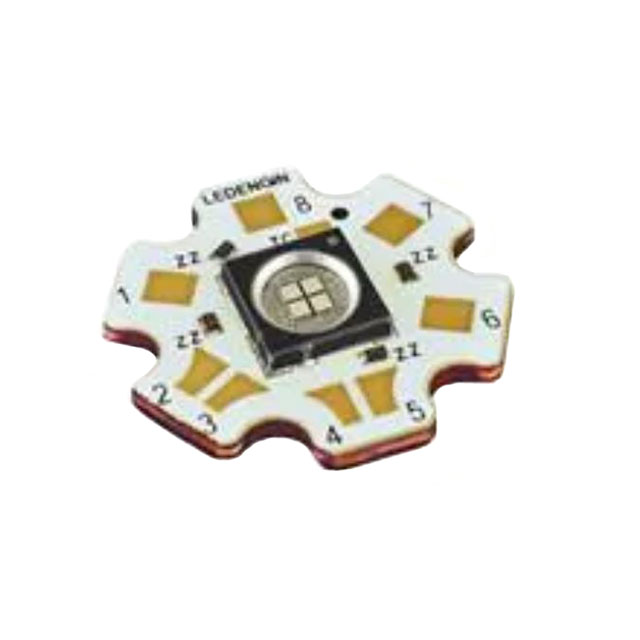

LZ4-V4UV0R-0000

Obsolete

ams-OSRAM USA INC.

EMITTER UV

Search across all available documentation for this part.

Obsolete

ams-OSRAM USA INC.

EMITTER UV

Technical Specifications

Parameters and characteristics for this part

Part	Current - Test	CCT (K)	Color	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Voltage - Forward (Vf) (Typ) [custom]	Wavelength	Current - Max	Configuration	Light Emitting Surface (LES) [y]	Light Emitting Surface (LES) [x]	Type	Lumens/Watt @ Current - Test	Size / Dimension [diameter]	Height [z]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Luminous Flux @ Current/Temperature [custom]	Viewing Angle	Lens Type	Mounting Type	Operating Temperature	Package / Case	Orientation	Voltage - Forward (Vf) (Typ)	Current - DC Forward (If) (Max)	Wavelength
ams-OSRAM USA INC. LZ4-V4MDPB-0000	1 A 1 A 1 A 1 A	6335 K	Blue Green Red White	3 V	3.5 V	3 V	2.4 V	454nm Blue 525nm Green 624nm Red	2.5 A 3 A 3 A 3 A	Starboard	7 mm	7 mm	LED Module	48 lm/W 63 lm/W 98 lm/W	19.9 mm	2.66 mm	115 lm	220 lm	293 lm	1250 mW	110 °	Flat
ams-OSRAM USA INC. LZ4-V4UV0R-0000													Ultraviolet (UV)								110 °		Surface Mount	130 °C	Star Array	Top View	15.2 V	1 A	368 nm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Ultraviolet (UV) Emitter 368nm (365nm ~ 370nm) 15.2V 1A 110° Star Array
