0010081121
ActiveMolex

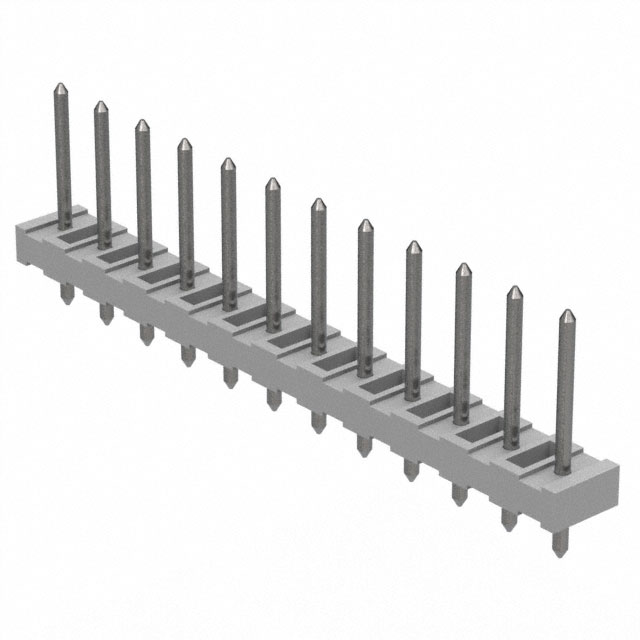

CONN HEADER VERT 12POS 5.08MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
0010081121
ActiveMolex
CONN HEADER VERT 12POS 5.08MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0010081121 |
|---|---|
| Applications | Industrial, General Purpose, Telecommunications |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 2.54 çm |
| Contact Finish Thickness - Mating | 100 çin |
| Contact Finish Thickness - Post | 2.54 µm |
| Contact Finish Thickness - Post | 100 µin |
| Contact Length - Mating | 0.47 in |
| Contact Length - Mating | 11.94 mm |
| Contact Length - Post | 3.94 mm |
| Contact Length - Post | 0.155 " |
| Contact Material | Brass |
| Contact Shape | Circular |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Natural |
| Insulation Height | 0.125 in |
| Insulation Height | 3.18 mm |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Through Hole |
| Number of Positions | 12 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Overall Contact Length | 0.75 in |
| Overall Contact Length | 19.05 mm |
| Pitch - Mating | 5.08 mm |
| Pitch - Mating | 0.2 in |
| Shrouding | Unshrouded |
| Style | Board to Board, Cable |
| Termination | Solder |
001008 Series
| Part | Applications | Termination | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Insulation Color | Contact Type | Insulation Material | Style | Contact Material | Connector Type | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Shrouding | Contact Finish - Post | Fastening Type | Pitch - Mating | Pitch - Mating | Number of Positions | Contact Length - Post | Contact Length - Post | Number of Rows | Insulation Height | Insulation Height | Mounting Type | Number of Positions Loaded | Overall Contact Length | Overall Contact Length | Contact Shape | Contact Length - Mating | Contact Length - Mating | Contact Length - Post [x] | Contact Length - Post [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 2 | 3.94 mm | 0.155 " | 1 | 0.125 in | 3.18 mm | Through Hole | All | 23.8 mm | 0.937 in | Circular | ||||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 1 | 0.125 in | 3.18 mm | Through Hole | All | 20.32 mm | 0.8 in | Circular | 13.51 mm | 0.532 in | 0.143 in | 3.63 mm | |||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Polyamide (PA66) Nylon 6/6 | Board to Board Cable | Brass | Header | Shrouded - 1 Wall | Tin | Push-Pull | 5.08 mm | 0.2 in | 2 | 4.45 mm | 0.175 in | 1 | 0.375 in | 9.53 mm | Through Hole | All | 19.05 mm | 0.75 in | Circular | 11.43 mm | 0.45 in | ||||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 6 | 3.94 mm | 0.155 " | 1 | 0.125 in | 3.18 mm | Through Hole | All | 19.05 mm | 0.75 in | Circular | 11.94 mm | 0.47 in | ||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 4 | 1 | 0.125 in | 3.18 mm | Through Hole | All | 20.32 mm | 0.8 in | Circular | 13.51 mm | 0.532 in | 0.143 in | 3.63 mm | ||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 12 | 3.94 mm | 0.155 " | 1 | 0.125 in | 3.18 mm | Through Hole | All | 19.05 mm | 0.75 in | Circular | 11.94 mm | 0.47 in | ||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 9 | 3.94 mm | 0.155 " | 1 | 0.125 in | 3.18 mm | Through Hole | All | 19.05 mm | 0.75 in | Circular | 11.94 mm | 0.47 in | ||
Molex | General Purpose Industrial Telecommunications | Solder | UL94 V-2 | 2.54 çm | 100 çin | Natural | Male Pin | Nylon Polyamide (PA) | Board to Board Cable | Brass | Header | 2.54 µm | 100 µin | Unshrouded | Tin | Push-Pull | 5.08 mm | 0.2 in | 3.94 mm | 0.155 " | 1 | 0.125 in | 3.18 mm | Through Hole | All | 19.05 mm | 0.75 in | Circular | 11.94 mm | 0.47 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.67 | |
| 10 | $ 1.42 | |||
| 100 | $ 1.17 | |||
| 1000 | $ 1.09 | |||
Description
General part information
001008 Series
Connector Header Through Hole 12 position 0.200" (5.08mm)
