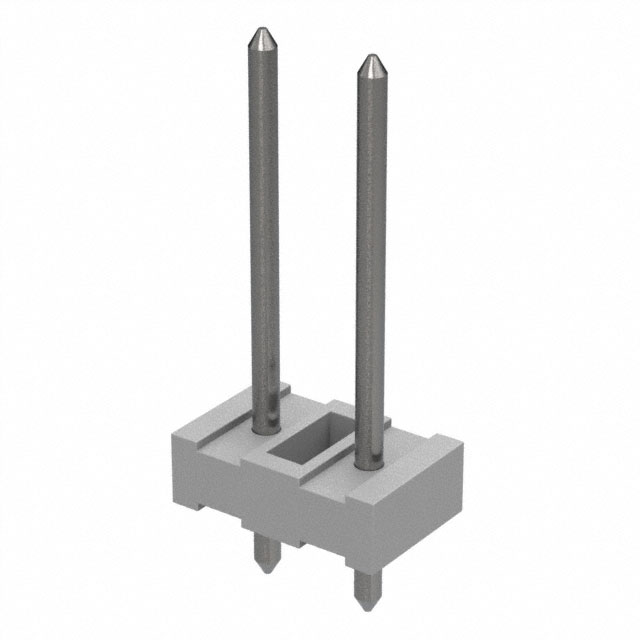

0010081022

Active

Molex

CONN HEADER VERT 2POS 5.08MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

0010081022

Active

Molex

CONN HEADER VERT 2POS 5.08MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0010081022

Applications	Industrial, General Purpose, Telecommunications
Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	2.54 çm
Contact Finish Thickness - Mating	100 çin
Contact Finish Thickness - Post	2.54 µm
Contact Finish Thickness - Post	100 µin
Contact Length - Post	3.94 mm
Contact Length - Post	0.155 "
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Natural
Insulation Height	0.125 in
Insulation Height	3.18 mm
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-2
Mounting Type	Through Hole
Number of Positions	2
Number of Positions Loaded	All
Number of Rows	1
Overall Contact Length	23.8 mm
Overall Contact Length	0.937 in
Pitch - Mating	5.08 mm
Pitch - Mating	0.2 in
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

001008 Series

Part	Applications	Termination	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Color	Contact Type	Insulation Material	Style	Contact Material	Connector Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Shrouding	Contact Finish - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Rows	Insulation Height	Insulation Height	Mounting Type	Number of Positions Loaded	Overall Contact Length	Overall Contact Length	Contact Shape	Contact Length - Mating	Contact Length - Mating	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0010081022	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in	2	3.94 mm	0.155 "	1	0.125 in	3.18 mm	Through Hole	All	23.8 mm	0.937 in	Circular
Molex 0010081039	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in				1	0.125 in	3.18 mm	Through Hole	All	20.32 mm	0.8 in	Circular	13.51 mm	0.532 in	0.143 in	3.63 mm
Molex 0010085021	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Polyamide (PA66) Nylon 6/6	Board to Board Cable	Brass	Header			Shrouded - 1 Wall	Tin	Push-Pull	5.08 mm	0.2 in	2	4.45 mm	0.175 in	1	0.375 in	9.53 mm	Through Hole	All	19.05 mm	0.75 in	Circular	11.43 mm	0.45 in
Molex 0010081061	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in	6	3.94 mm	0.155 "	1	0.125 in	3.18 mm	Through Hole	All	19.05 mm	0.75 in	Circular	11.94 mm	0.47 in
Molex 0010081049	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in	4			1	0.125 in	3.18 mm	Through Hole	All	20.32 mm	0.8 in	Circular	13.51 mm	0.532 in	0.143 in	3.63 mm
Molex 0010081121	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in	12	3.94 mm	0.155 "	1	0.125 in	3.18 mm	Through Hole	All	19.05 mm	0.75 in	Circular	11.94 mm	0.47 in
Molex 0010081091	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in	9	3.94 mm	0.155 "	1	0.125 in	3.18 mm	Through Hole	All	19.05 mm	0.75 in	Circular	11.94 mm	0.47 in
Molex 0010081031	General Purpose Industrial Telecommunications	Solder	UL94 V-2	2.54 çm	100 çin	Natural	Male Pin	Nylon Polyamide (PA)	Board to Board Cable	Brass	Header	2.54 µm	100 µin	Unshrouded	Tin	Push-Pull	5.08 mm	0.2 in		3.94 mm	0.155 "	1	0.125 in	3.18 mm	Through Hole	All	19.05 mm	0.75 in	Circular	11.94 mm	0.47 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.47
		10	$ 0.40
		100	$ 0.31
		1700	$ 0.23
		5100	$ 0.21
		10200	$ 0.20

Description

General part information

001008 Series

Connector Header Through Hole 2 position 0.200" (5.08mm)
