337-007-558-104
ActiveEDAC Inc.
3.96MM RIGHT-ANGLE 7P -40℃~+105℃ PUSH-PULL,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet

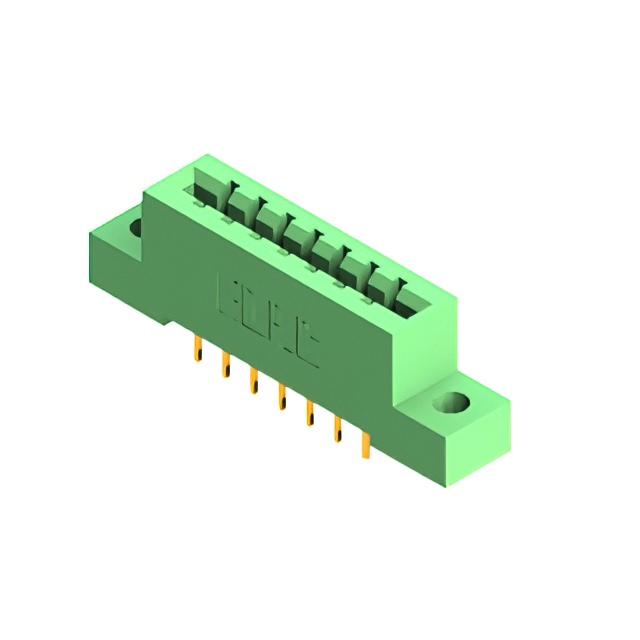

337-007-558-104
ActiveEDAC Inc.
3.96MM RIGHT-ANGLE 7P -40℃~+105℃ PUSH-PULL,P=3.96MM EDGEBOARD CONNECTORS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 337-007-558-104 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Single Edge |
| Color | Green |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Top Opening, Unthreaded |
| Flange Feature [diameter] | 3.96 mm |
| Flange Feature [diameter] | 0.156 in |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 7 |
| Number of Positions/Bay/Row [custom] | 7 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Single |
| Termination | Wire Wrap |
| Termination Rows | 1 |
337-007 Series
...
| Part | Mounting Type | Contact Type | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish | Termination | Contact Material | Termination Rows | Number of Positions/Bay/Row [custom] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Card Type | Flange Feature | Color | Contact Finish Thickness | Contact Finish Thickness | Material - Insulation | Read Out | Gender | Number of Positions | Pitch [x] | Pitch [x] | Flange Feature [diameter] | Flange Feature [diameter] | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Solder | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | |||
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Top Mount Opening Unthreaded | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | 0.156 in | 3.96 mm | |
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | ||||
EDAC Inc. | Through Hole Right Angle | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | 4-40 Threaded Insert Top Mount Opening | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Solder | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | |||
EDAC Inc. | Through Hole Right Angle | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | 0.156 in | 3.96 mm | |
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Solder | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | Card Guides | ||
EDAC Inc. | Through Hole Right Angle | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | |||
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | 4-40 Flush Mount Threaded Insert Top Opening | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | |||
EDAC Inc. | Through Hole | Cantilever | -40 °C | 105 ░C | Gold | Wire Wrap | Copper Alloy | 1 | 7 | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 1 | Non Specified - Single Edge | Flush Mount Top Opening Unthreaded | Green | 10 Áin | 0.25 Ám | Polyester Thermoplastic | Single | Female | 7 | 0.156 in | 3.96 mm | 0.156 in | 3.96 mm |
