337-007-540-158

Active

EDAC Inc.

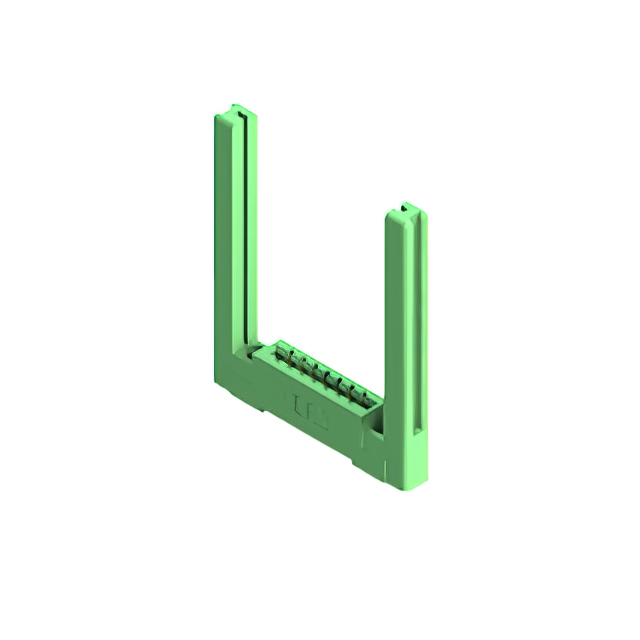

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 7 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Enhanced Product Overview EN +1

337-007-540-158

Active

EDAC Inc.

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 7 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT

Deep-Dive with AI

DocumentsDatasheet Enhanced Product Overview EN +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	337-007-540-158

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Single Edge
Color	Green
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	7
Number of Positions/Bay/Row [custom]	7
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Single
Termination	Wire Wrap
Termination Rows	1

337-007 Series

...

Part	Mounting Type	Contact Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish	Termination	Contact Material	Termination Rows	Number of Positions/Bay/Row [custom]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Card Type	Flange Feature	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Read Out	Gender	Number of Positions	Pitch [x]	Pitch [x]	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 337-007-523-158	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Solder	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm
EDAC Inc. 337-007-540-604	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	Top Mount Opening Unthreaded	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm	0.156 in	3.96 mm
EDAC Inc. 337-007-540-101	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge		Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm
EDAC Inc. 337-007-559-668	Through Hole Right Angle	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	4-40 Threaded Insert Top Mount Opening	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm			Card Guides
EDAC Inc. 337-007-523-108	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Solder	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm
EDAC Inc. 337-007-558-104	Through Hole Right Angle	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm	0.156 in	3.96 mm
EDAC Inc. 337-007-521-168	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Solder	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm			Card Guides
EDAC Inc. 337-007-559-168	Through Hole Right Angle	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm
EDAC Inc. 337-007-540-158	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm
EDAC Inc. 337-007-544-104	Through Hole	Cantilever	-40 °C	105 ░C	Gold	Wire Wrap	Copper Alloy	1	7	1.37 mm	0.054 "	1.78 mm	0.07 in	1	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Green	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	Female	7	0.156 in	3.96 mm	0.156 in	3.96 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 7.99
Newark	Each	25	$ 8.39
		50	$ 8.19
		100	$ 7.80
		250	$ 7.61
		500	$ 7.34

Description

General part information

337-007 Series

7 Position Female Connector Non Specified - Single Edge Gold 0.156" (3.96mm) Green

Documents

Technical documentation and resources

Datasheet

Enhanced Product Overview EN

Datasheet

Drawing EN

Datasheet
