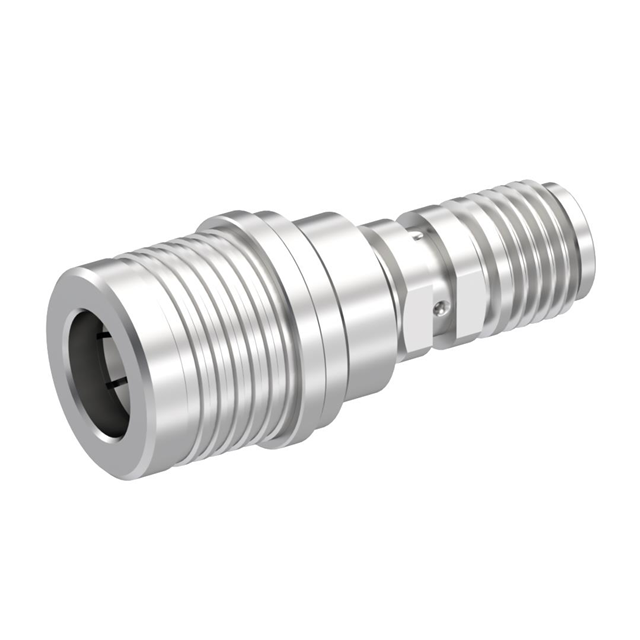

R191911000

Active

Radiall USA, Inc.

QMA M-SMA F

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QMA M-SMA F

Technical Specifications

Parameters and characteristics for this part

Specification	R191911000

Adapter Type	Plug to Jack
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	QMA Plug, Male Pin
Convert To (Adapter End)	SMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Mounting Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Style	Frequency - Max [Max]	Convert From (Adapter End)	Body Material	Fastening Type	Center Contact Plating	Dielectric Material	Impedance	Adapter Type	Center Contact Material	Convert To (Adapter End)	Conversion Type	Center Gender
Radiall USA, Inc. R191912000	Free Hanging (In-Line)	White Bronze	-40 °C	80 C	Straight	6000 MHz	SMA Plug Male Pin	Brass	Snap-On Threaded	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Plug to Jack	Brass	Female Socket QMA Jack	Between Series
Radiall USA, Inc. R191911000	Free Hanging (In-Line)		-40 °C	80 C	Straight	6000 MHz	QMA Plug Male Pin	Brass		Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Plug to Jack	Beryllium Copper	Female Socket SMA Jack	Between Series
Radiall USA, Inc. R191913000	Free Hanging (In-Line)	White Bronze	-40 °C	80 C	Straight	6000 MHz	Female Socket SMA Jack	Brass	Snap-On Threaded	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Jack to Jack	Beryllium Copper	Female Socket QMA Jack	Between Series	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector QMA Plug, Male Pin To SMA Jack, Female Socket 50 Ohms
