R191912000

Active

Radiall USA, Inc.

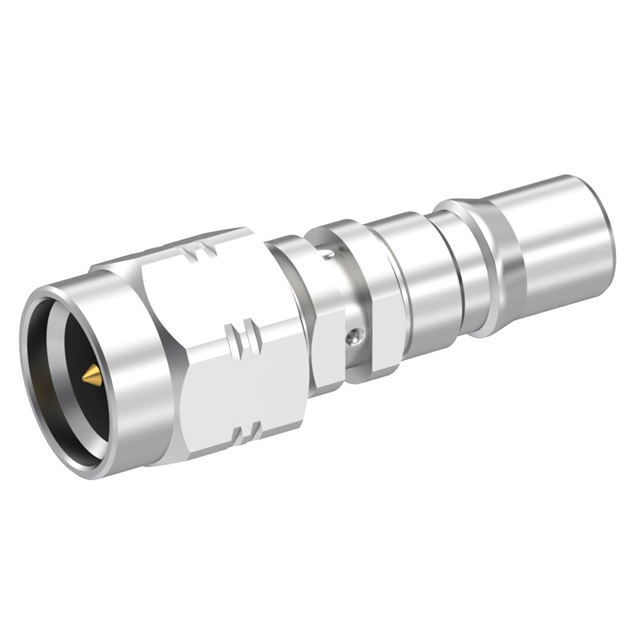

RF CONNECTOR ADAPTER, QMA-SMA, FEMALE-MALE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR ADAPTER, QMA-SMA, FEMALE-MALE

Technical Specifications

Parameters and characteristics for this part

Specification	R191912000

Adapter Type	Plug to Jack
Body Finish	White Bronze
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Conversion Type	Between Series
Convert From (Adapter End)	SMA Plug, Male Pin
Convert To (Adapter End)	QMA Jack, Female Socket
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Threaded, Snap-On
Frequency - Max [Max]	6000 MHz
Impedance	50 Ohms
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Style	Straight

Part	Mounting Type	Body Finish	Operating Temperature [Min]	Operating Temperature [Max]	Style	Frequency - Max [Max]	Convert From (Adapter End)	Body Material	Fastening Type	Center Contact Plating	Dielectric Material	Impedance	Adapter Type	Center Contact Material	Convert To (Adapter End)	Conversion Type	Center Gender
Radiall USA, Inc. R191912000	Free Hanging (In-Line)	White Bronze	-40 °C	80 C	Straight	6000 MHz	SMA Plug Male Pin	Brass	Snap-On Threaded	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Plug to Jack	Brass	Female Socket QMA Jack	Between Series
Radiall USA, Inc. R191911000	Free Hanging (In-Line)		-40 °C	80 C	Straight	6000 MHz	QMA Plug Male Pin	Brass		Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Plug to Jack	Beryllium Copper	Female Socket SMA Jack	Between Series
Radiall USA, Inc. R191913000	Free Hanging (In-Line)	White Bronze	-40 °C	80 C	Straight	6000 MHz	Female Socket SMA Jack	Brass	Snap-On Threaded	Gold	Polytetrafluoroethylene (PTFE)	50 Ohms	Jack to Jack	Beryllium Copper	Female Socket QMA Jack	Between Series	Female to Female

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 39.62

General part information

Adapter Coaxial Connector SMA Plug, Male Pin To QMA Jack, Female Socket 50 Ohms

Technical documentation and resources

No documents available
