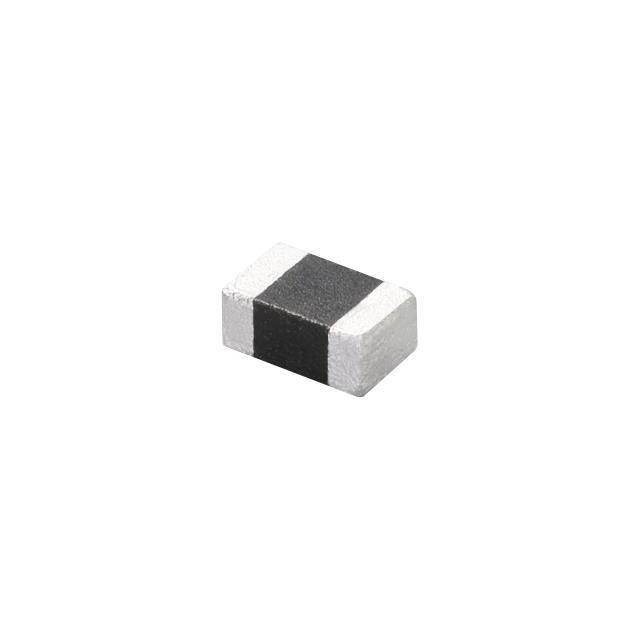

DFE201210S-1R5M=P2
ObsoleteMurata Power Solutions Inc.
FIXED IND 1.5UH 2A 96 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DFE201210S-1R5M=P2
ObsoleteMurata Power Solutions Inc.
FIXED IND 1.5UH 2A 96 MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DFE201210S-1R5M=P2 |
|---|---|
| Current - Saturation (Isat) | 2.7 A |
| Current Rating (Amps) | 2 A |
| DC Resistance (DCR) [Max] | 96 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1.5 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 0805 |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
DFE201210S Series
1.5 µH Shielded Drum Core, Wirewound Inductor 2 A 96mOhm Max 0805 (2012 Metric)
