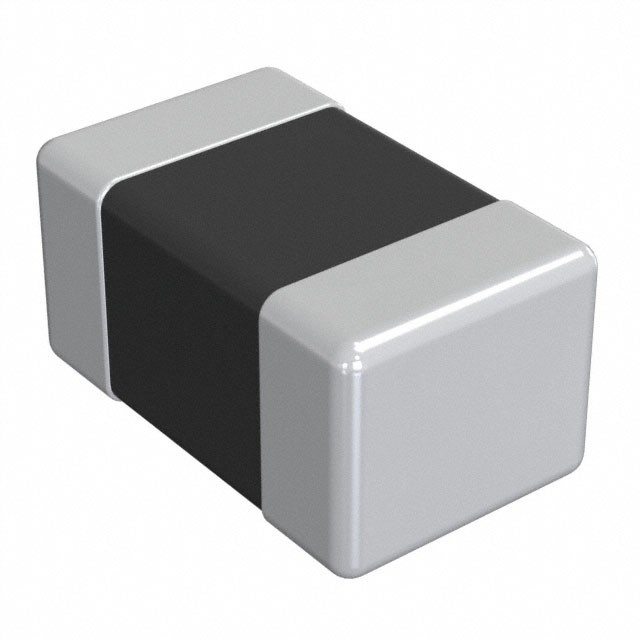

DFE201210S-1R0M=P2
ObsoleteMurata Power Solutions Inc.
FIXED IND 1UH 2.3A 70 MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DFE201210S-1R0M=P2
ObsoleteMurata Power Solutions Inc.
FIXED IND 1UH 2.3A 70 MOHM SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DFE201210S-1R0M=P2 |
|---|---|
| Current - Saturation (Isat) | 3.2 A |
| DC Resistance (DCR) [Max] | 70 mOhm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Inductance | 1 µH |
| Inductance Frequency - Test | 1 MHz |
| Material - Core | Metal |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0805 |
| Shielding | Shielded |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.047 in |
| Size / Dimension [y] | 1.2 mm |
| Supplier Device Package | 0805 (2012 Metric) |
| Tolerance | 20 % |
| Type | Wirewound, Drum Core |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.44 | |
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.21 | |||
| Digi-Reel® | 1 | $ 0.44 | ||
| 10 | $ 0.34 | |||
| 25 | $ 0.31 | |||
| 50 | $ 0.29 | |||
| 100 | $ 0.27 | |||
| 250 | $ 0.24 | |||
| 500 | $ 0.22 | |||
| 1000 | $ 0.21 | |||
Description
General part information
DFE201210S Series
1 µH Shielded Drum Core, Wirewound Inductor 2.3 A 70mOhm Max 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
