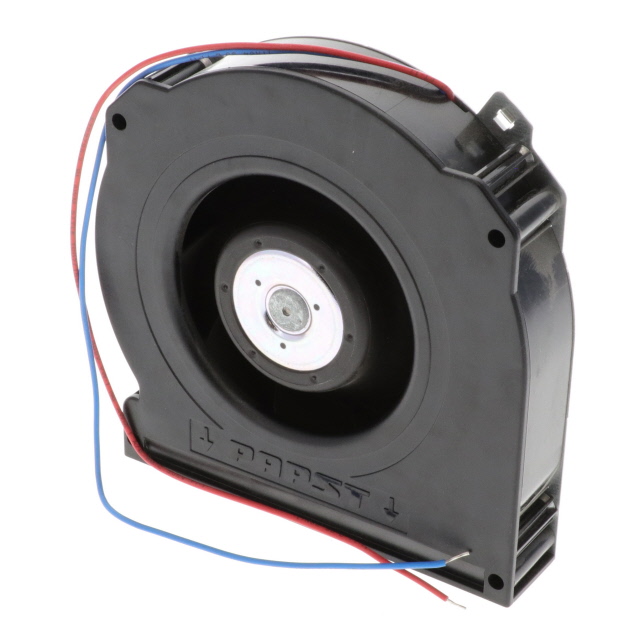

RLF100-11/18

Active

ebm-papst Inc.

FAN BLOWER CF 127X25.4MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 127X25.4MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RLF100-11/18

Air Flow	37.7 CFM
Air Flow	1.06 mł/min
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower, Centrifugal
Ingress Protection	IP54 - Dust Protected, Water Resistant
Lifetime @ Temp.	80000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Steel, Fiberglass Reinforced, Plastic
Noise	64 dB(A)
Operating Temperature [Max]	75 ░C
Operating Temperature [Max]	75 °C
Operating Temperature [Min]	-20 C
Operating Temperature [Min]	-20 °C
RPM	5100 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	5 in
Size / Dimension [z]	5 in
Termination	2 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	60 V
Voltage Range [Min]	36 VDC
Width [y]	25.4 mm

Part	Features	Static Pressure	Static Pressure	Material - Frame	Approval Agency	Noise	Bearing Type	Voltage - Rated [custom]	Fan Type	Termination	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Width [y]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Ingress Protection	Voltage - Rated
ebm-papst Inc. RLF100-11/18/2HP	PWM Control Speed Sensor (Tach)	675 Pa	2.71 in H2O	Glass Filled Plastic	CCC CE CSA UL VDE	60 dB(A)	Ball	48 VDC	Blower Centrifugal	4 Wire Leads	6400 RPM	43 VDC	53 VDC	37.7 CFM	1.06 mł/min	-20 °C	70 °C	-20 C	70 °C	0.71 lb	322.05 g	72500 Hrs	Plastic Fiberglass Reinforced	360 mA	25.4 mm	17 W	5 in	5 in	Square/Rounded
ebm-papst Inc. RLF100-11/18				Fiberglass Reinforced Plastic Steel	CE CSA UL VDE	64 dB(A)	Ball	48 VDC	Blower Centrifugal	2 Wire Leads	5100 RPM	36 VDC	60 V	37.7 CFM	1.06 mł/min	-20 °C	75 °C	-20 C	75 ░C			80000 Hrs	Plastic Fiberglass Reinforced		25.4 mm		5 in	5 in	Square/Rounded	IP54 - Dust Protected Water Resistant
ebm-papst Inc. RLF100-11/14/2U	Locked Rotor Protection Speed Sensor (Tach)			Plastic Fiberglass Reinforced			Ball		Blower Centrifugal	3 Wire Leads	5100 RPM	16 VDC	30 V	37.7 CFM	1.06 mł/min	-20 °C	75 °C	-20 C	75 ░C			80000 Hrs	Plastic Fiberglass Reinforced		25.4 mm	8 W	5 in	5 in	Square/Rounded	IP54 - Dust Protected Water Resistant	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Centrifugal 48VDC Square/Rounded - 127mm L x 127mm H Ball 37.7 CFM (1.06m³/min) 2 Wire Leads
