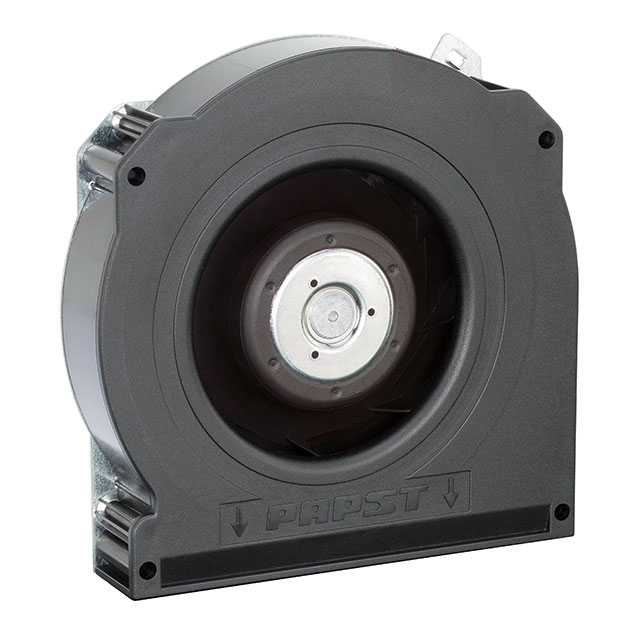

RLF100-11/18/2HP

Active

ebm-papst Inc.

FAN BLOWER CF 127X25.4MM 48VDC

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN BLOWER CF 127X25.4MM 48VDC

Technical Specifications

Parameters and characteristics for this part

Specification	RLF100-11/18/2HP

Air Flow	37.7 CFM
Air Flow	1.06 mł/min
Approval Agency	UL, CSA, VDE, CCC, CE
Bearing Type	Ball
Current Rating (Amps)	360 mA
Fan Type	Blower, Centrifugal
Features	Speed Sensor (Tach), PWM Control
Lifetime @ Temp.	72500 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Glass Filled, Plastic
Noise	60 dB(A)
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	17 W
RPM	6400 RPM
Size / Dimension	Square/Rounded
Size / Dimension [x]	5 in
Size / Dimension [z]	5 in
Static Pressure	675 Pa
Static Pressure	2.71 in H2O
Termination	4 Wire Leads
Voltage - Rated [custom]	48 VDC
Voltage Range [Max]	53 VDC
Voltage Range [Min]	43 VDC
Weight	0.71 lb
Weight	322.05 g
Width [y]	25.4 mm

Part	Features	Static Pressure	Static Pressure	Material - Frame	Approval Agency	Noise	Bearing Type	Voltage - Rated [custom]	Fan Type	Termination	RPM	Voltage Range [Min]	Voltage Range [Max]	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Weight	Weight	Lifetime @ Temp.	Material - Blade	Current Rating (Amps)	Width [y]	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension	Ingress Protection	Voltage - Rated
ebm-papst Inc. RLF100-11/18/2HP	PWM Control Speed Sensor (Tach)	675 Pa	2.71 in H2O	Glass Filled Plastic	CCC CE CSA UL VDE	60 dB(A)	Ball	48 VDC	Blower Centrifugal	4 Wire Leads	6400 RPM	43 VDC	53 VDC	37.7 CFM	1.06 mł/min	-20 °C	70 °C	-20 C	70 °C	0.71 lb	322.05 g	72500 Hrs	Plastic Fiberglass Reinforced	360 mA	25.4 mm	17 W	5 in	5 in	Square/Rounded
ebm-papst Inc. RLF100-11/18				Fiberglass Reinforced Plastic Steel	CE CSA UL VDE	64 dB(A)	Ball	48 VDC	Blower Centrifugal	2 Wire Leads	5100 RPM	36 VDC	60 V	37.7 CFM	1.06 mł/min	-20 °C	75 °C	-20 C	75 ░C			80000 Hrs	Plastic Fiberglass Reinforced		25.4 mm		5 in	5 in	Square/Rounded	IP54 - Dust Protected Water Resistant
ebm-papst Inc. RLF100-11/14/2U	Locked Rotor Protection Speed Sensor (Tach)			Plastic Fiberglass Reinforced			Ball		Blower Centrifugal	3 Wire Leads	5100 RPM	16 VDC	30 V	37.7 CFM	1.06 mł/min	-20 °C	75 °C	-20 C	75 ░C			80000 Hrs	Plastic Fiberglass Reinforced		25.4 mm	8 W	5 in	5 in	Square/Rounded	IP54 - Dust Protected Water Resistant	24 VDC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Fan Blower, Centrifugal 48VDC Square/Rounded - 127mm L x 127mm H Ball 37.7 CFM (1.06m³/min) 4 Wire Leads
