PX0413/04S/PC

Active

BULGIN LIMITED

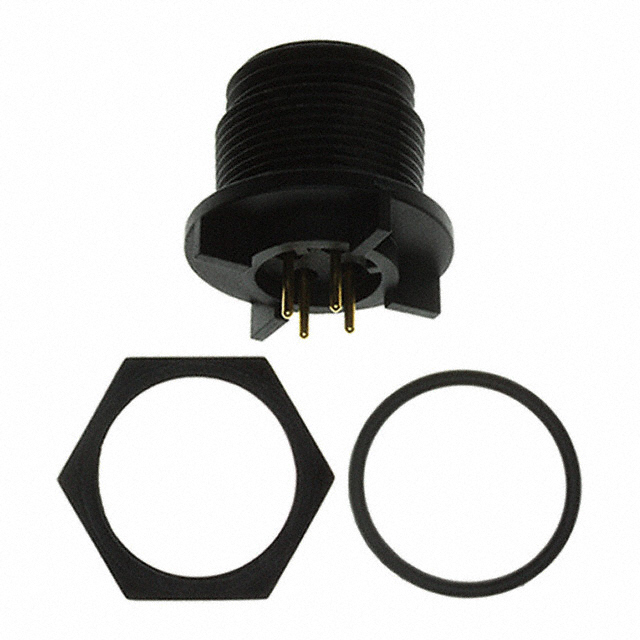

CIRCULAR CONNECTOR, IP68, REAR MOUNT, BUCCANEER 400 SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PX0413/04S/PC

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, IP68, REAR MOUNT, BUCCANEER 400 SERIES, PANEL MOUNT RECEPTACLE, 4 CONTACTS

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0413/04S/PC

Color	Black
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Features	UV Resistant
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	125 VAC

PX0413 Series

Part	Primary Material	Material Flammability Rating	Features	Mounting Feature	Termination	Ingress Protection	Color	Number of Positions	Current Rating (Amps)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Connector Type	Contact Material	Shielding	Contact Finish - Mating	Voltage Rating	Housing Color	Contact Shape	Note	Contact Type	Type
BULGIN LIMITED PX0413/04S/PC	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut	Solder	IP68 IP69K	Black	4	5 A	Panel Mount Through Hole	-40 °C	80 C	Keyed	Receptacle Female Sockets	Copper Alloy	Unshielded	Gold	125 VAC
BULGIN LIMITED PX0413/02P	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut		IP68 - Dust Tight Waterproof		2			-40 °C	80 C	Keyed	Receptacle Housing		Unshielded			Black	Circular	Contacts Not Included	Crimp and Solder Cup	For Male Pins
BULGIN LIMITED PX0413/12P	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut		IP68 - Dust Tight Waterproof		12			-40 °C	80 C	Keyed	Receptacle Housing		Unshielded			Black	Circular	Contacts Not Included	Crimp and Solder Cup	For Male Pins
BULGIN LIMITED PX0413/12S/PC	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut	Solder	IP68 IP69K	Black	12		Panel Mount Through Hole	-40 °C	80 C	Keyed	Receptacle Female Sockets	Copper Alloy	Unshielded	Gold	50 VAC
BULGIN LIMITED PX0413/02P/PC	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut	Solder	IP68 IP69K	Black	2	8 A	Panel Mount Through Hole	-40 °C	80 C	Keyed	Male Pins Receptacle	Copper Alloy	Unshielded	Gold	250 VAC
BULGIN LIMITED PX0413/08S	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut		IP68 - Dust Tight Waterproof		8			-40 °C	80 C	Keyed	Receptacle Housing		Unshielded			Black	Circular	Contacts Not Included	Crimp and Solder Cup	For Female Sockets
BULGIN LIMITED PX0413/10P/PC	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut	Solder	IP68 IP69K	Black	10		Panel Mount Through Hole	-40 °C	80 C	Keyed	Male Pins Receptacle	Copper Alloy	Unshielded	Gold	50 VAC
BULGIN LIMITED PX0413/12P/PC	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut	Solder	IP68 IP69K	Black	12		Panel Mount Through Hole	-40 °C	80 C	Keyed	Male Pins Receptacle	Copper Alloy	Unshielded	Gold	50 VAC
BULGIN LIMITED PX0413/03S	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut		IP68 - Dust Tight Waterproof		3			-40 °C	80 C	Keyed	Receptacle Housing		Unshielded			Black	Circular	Contacts Not Included	Crimp and Solder Cup	For Female Sockets
BULGIN LIMITED PX0413/03S/PC	Plastic	UL94 V-0	UV Resistant	Bulkhead - Front Side Nut	Solder	IP68 IP69K	Black	3	8 A	Panel Mount Through Hole	-40 °C	80 C	Keyed	Receptacle Female Sockets	Copper Alloy	Unshielded	Gold	250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 22.38
		10	$ 19.60
		25	$ 18.75
		50	$ 18.15
		100	$ 17.54
		250	$ 16.58
		500	$ 16.09
Newark	Each	1	$ 24.69
		10	$ 21.49
		100	$ 19.44
		250	$ 18.37
		500	$ 16.69
		1000	$ 15.55
		2500	$ 14.56
		5000	$ 14.02

Description

General part information

PX0413 Series

4 (Power) Position Circular Connector Receptacle, Female Sockets Solder

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
