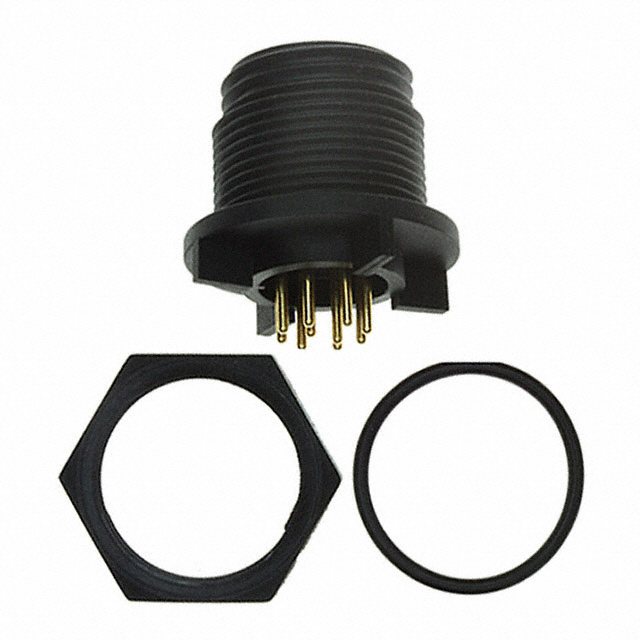

PX0413/10P/PC

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 400 SERIES, PANEL MOUNT PLUG, 10 CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

PX0413/10P/PC

Active

BULGIN LIMITED

CIRCULAR CONNECTOR, BUCCANEER 400 SERIES, PANEL MOUNT PLUG, 10 CONTACTS, NYLON (POLYAMIDE) BODY

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PX0413/10P/PC

Color	Black
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Gold
Contact Material	Copper Alloy
Features	UV Resistant
Ingress Protection	IP68, IP69K
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Positions	10
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Solder
Voltage Rating	50 VAC

buccaneer-400 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Shielding	Features	Type	Includes	Orientation	Housing Color	Contact Shape	Material Flammability Rating	Ingress Protection	Primary Material	Mounting Type	Contact Type	Connector Type	Note	Number of Positions	Mounting Feature
BULGIN LIMITED PX0410/03S/5560	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	3
BULGIN LIMITED PX0410/06S/3035	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	6
BULGIN LIMITED PX0410/06S/5055	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	6
BULGIN LIMITED PX0410/10S/6570	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	10
BULGIN LIMITED PX0410/04P/3035	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	4
BULGIN LIMITED PX0413/02P	-40 °C	80 C	Unshielded	UV Resistant	For Male Pins		Keyed	Black	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic		Crimp and Solder Cup	Receptacle Housing	Contacts Not Included	2	Bulkhead - Front Side Nut
BULGIN LIMITED PX0410/04P/6570	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	4
BULGIN LIMITED PX0410/08P/6065	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	8
BULGIN LIMITED PX0410/08P/5560	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Male Pins	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	8
BULGIN LIMITED PX0410/02S/3035	-40 °C	80 C	Unshielded	Backshell Coupling Nut UV Resistant	For Female Sockets	1 Backshell 1 Cage Clamp 1 Clamp Nut 1 Connector 1 Gland 1 O-Ring	Keyed	Black Blue	Circular	UL94 V-0	IP68 - Dust Tight Waterproof	Plastic	Free Hanging (In-Line)	Crimp and Solder Cup	Plug Housing	Contacts Not Included	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	3	$ 28.28
		13	$ 26.37
		26	$ 25.89
Digikey	Bulk	1	$ 32.77
		10	$ 28.70
		40	$ 26.57
		80	$ 25.69
		280	$ 24.27
Newark	Each	50	$ 28.49
		100	$ 27.39
		250	$ 25.57
		500	$ 23.74
TME	N/A	1	$ 36.64
		10	$ 29.88
		40	$ 26.39
		80	$ 24.90
		120	$ 24.12

Description

General part information

buccaneer-400 Series

10 (Power) Position Circular Connector Receptacle, Male Pins Solder
