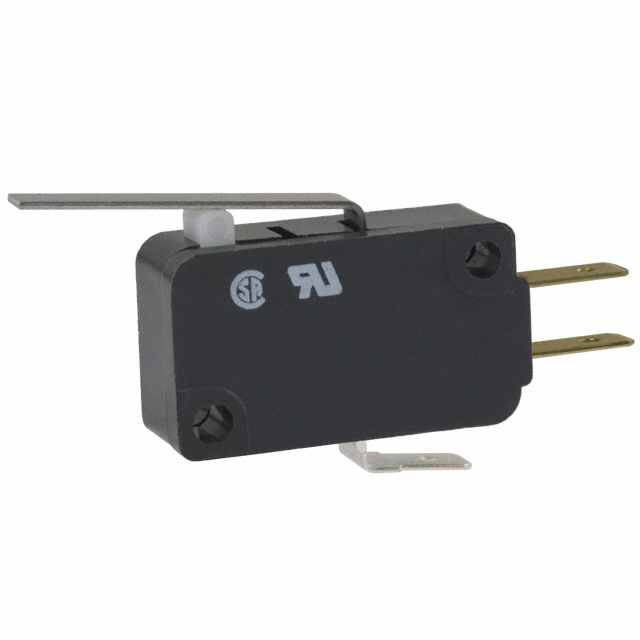

V7-1B17D8-022
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 125V
Deep-Dive with AI
Search across all available documentation for this part.
V7-1B17D8-022
ActiveHoneywell Sensing and Productivity Solutions
SWITCH SNAP ACTION SPDT 11A 125V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | V7-1B17D8-022 |
|---|---|
| Actuator Type | Lever, Straight |
| Circuit | SPDT |
| Current Rating (Amps) | 11 A, 500 mA |
| Differential Travel | 0.027 " |
| Differential Travel | 0.7 mm |
| Electrical Life | 100000 Cycles |
| Mechanical Life | 10000000 Cycles |
| Mounting Type | Chassis Mount |
| Operating Force | 82 gf |
| Operating Position | 15.3 mm |
| Operating Position | 0.602 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Overtravel | 0.068 " |
| Overtravel | 1.73 mm |
| Pretravel | 0.12 in |
| Pretravel | 3 mm |
| Release Force | 8 gf |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.187" (4.7mm) |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 2.76 | |
| 10 | $ 2.29 | |||
| 25 | $ 2.12 | |||
| 50 | $ 2.00 | |||
| 100 | $ 1.89 | |||
| 250 | $ 1.88 | |||
Description
General part information
V7-1B1 Series
Switch SPDT Chassis Mount
