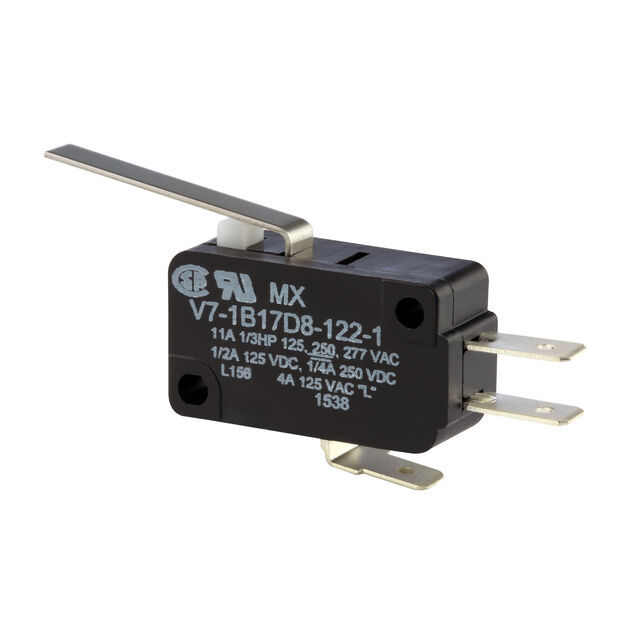

V7-1B17D8-122-1

Active

Honeywell Sensing and Productivity Solutions

SWITCH STRGHT LVR SPDT 11A QC

Search across all available documentation for this part.

Active

Honeywell Sensing and Productivity Solutions

SWITCH STRGHT LVR SPDT 11A QC

Technical Specifications

Parameters and characteristics for this part

Specification	V7-1B17D8-122-1

null

Part	Operating Force	Actuator Type	Electrical Life	Current Rating (Amps)	Mechanical Life	Termination Style	Operating Position	Operating Position	Differential Travel	Differential Travel	Pretravel	Pretravel	Voltage Rating - AC	Operating Temperature [Max]	Operating Temperature [Min]	Switch Function	Circuit	Mounting Type	Overtravel	Overtravel	Voltage Rating - DC	Release Force	Features	Overtravel
Honeywell Sensing and Productivity Solutions V7-1B17D8-022	82 gf	Lever Straight	100000 Cycles	11 A 500 mA	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	15.3 mm	0.602 "	0.027 "	0.7 mm	0.12 in	3 mm	125 V	85 °C	-40 °C	On-Mom	SPDT	Chassis Mount	0.068 "	1.73 mm	125 VDC	8 gf
Honeywell Sensing and Productivity Solutions V7-1B17D8-048-S	50 gf	Lever Straight	100000 Cycles	11 A 500 mA	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	15.5 mm	0.61 in	0.05 in	1.3 mm			125 V	85 °C	-40 °C	On-Mom	SPDT	Chassis Mount	2.9 mm		125 VDC	4 gf	Actuator Seal Boot	0.115 in
Honeywell Sensing and Productivity Solutions V7-1B17D8-122-1
Honeywell Sensing and Productivity Solutions V7-1B17D8-122	43 gf	Lever Straight	100000 Cycles	11 A 500 mA	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	15.3 mm	0.602 "	0.053 in	1.35 mm			125 V	85 °C	-40 °C	On-Mom	SPDT	Chassis Mount	3 mm		125 VDC	4 gf		0.118 in
Honeywell Sensing and Productivity Solutions V7-1B17D8-048	50 gf	Lever Straight	100000 Cycles	11 A 500 mA	10000000 Cycles	Quick Connect - 0.187" (4.7mm)	15.3 mm	0.602 "	0.05 in	1.3 mm			125 V	85 °C	-40 °C	On-Mom	SPDT	Chassis Mount	2.9 mm		125 VDC	4 gf		0.115 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 5.80

General part information

Switch

Technical documentation and resources
