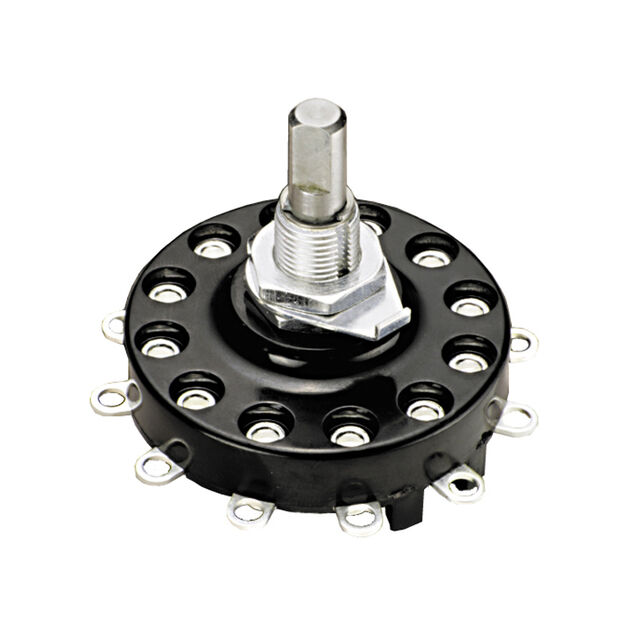

19101-08UL
ActiveGrayhill Inc.
SWITCH ROTARY 8POS 15A 120V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19101-08UL |
|---|---|
| Actuator Length [x] | 0.5 in |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP8T |
| Contact Material | Silver Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 15A, 1A |
| Depth Behind Panel [z] | 24.13 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Number of Positions | 8 |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 66.48 | |
| 5 | $ 57.06 | |||
| 10 | $ 53.40 | |||
| 25 | $ 48.91 | |||
| 50 | $ 45.74 | |||
| 100 | $ 42.76 | |||
Description
General part information
19101 Series
Rotary Switch 8 Position SP8T 15A (AC), 1A (DC) 120 VAC Panel Mount
