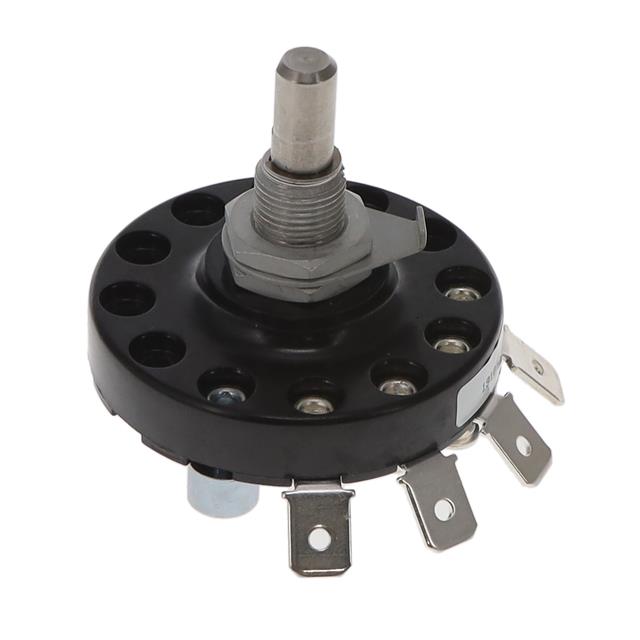

ActiveROTARY SWITCH, 3 POSITION, 1 POLE, 30 °, 15 A, 120 V, 19 SERIES
Deep-Dive with AI
Search across all available documentation for this part.
19101-03UL
ActiveROTARY SWITCH, 3 POSITION, 1 POLE, 30 °, 15 A, 120 V, 19 SERIES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 19101-03UL |
|---|---|
| Actuator Length [x] | 0.5 in |
| Actuator Type | Flatted |
| Actuator Type [diameter] | 6.35 mm |
| Angle of Throw | 30 ° |
| Circuit per Deck | SP3T |
| Contact Material | Silver Alloy |
| Contact Timing | Non-Shorting |
| Current Rating (Amps) | 15A, 1A |
| Depth Behind Panel [z] | 24.13 mm |
| Index Stops | Fixed |
| Number of Decks [custom] | 1 |
| Number of Poles per Deck | 1 |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 120 V |
| Voltage Rating - DC | 120 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
19101 Series
The 19 series Single Deck Rotary Switch has extremely rugged construction and virtually limitless configurations. It is available in single-pole, single deck 2 to 11-position plus common 30° indexing angle. It has non-shorting type contacts and a rivet provides the fixed stop on all switches. Minimum number of positions is 2 and maximum is 11. The rotational torque 12 to 36 ouch-inches on average for switches.
