H2AAG-10112-Y6

Active

Hirose Electric USA, Inc.

JUMPER-H1503TR/A3049Y/H1503TR12"

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

JUMPER-H1503TR/A3049Y/H1503TR12"

Technical Specifications

Parameters and characteristics for this part

...

Part	Contact Finish	Number of Conductors	Wire Gauge	Color	Length	Length [x]	Number of Rows	Length [x]	Length
Hirose Electric USA, Inc. H2AAG-10112-Y6	Gold	1	26 AWG	Yellow	304.8 mm	12 in	1
Hirose Electric USA, Inc. H2AAG-10105-Y4	Gold	1	24 AWG	Yellow		5 in	1	127 mm
Hirose Electric USA, Inc. H2AAG-10103-L4	Gold	1	24 AWG	Blue	76.2 mm	3 in	1
Hirose Electric USA, Inc. H2AAG-10104-B6	Gold	1	26 AWG	Black		4 "	1	101.6 mm
Hirose Electric USA, Inc. H2AAG-10104-W4	Gold	1	24 AWG	White		4 "	1	101.6 mm
Hirose Electric USA, Inc. H2AAG-10106-W4	Gold	1	24 AWG	White	152.4 mm		1		6 in
Hirose Electric USA, Inc. H2AAG-10102-L6	Gold	1	26 AWG	Blue			1
Hirose Electric USA, Inc. H2AAG-10110-L8	Gold	1	28 AWG	Blue	254 mm	10 in	1
Hirose Electric USA, Inc. H2AAG-10105-W6	Gold	1	26 AWG	White		5 in	1	127 mm
Hirose Electric USA, Inc. H2AAG-10108-Y4	Gold	1	24 AWG	Yellow	203.2 mm		1		8 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

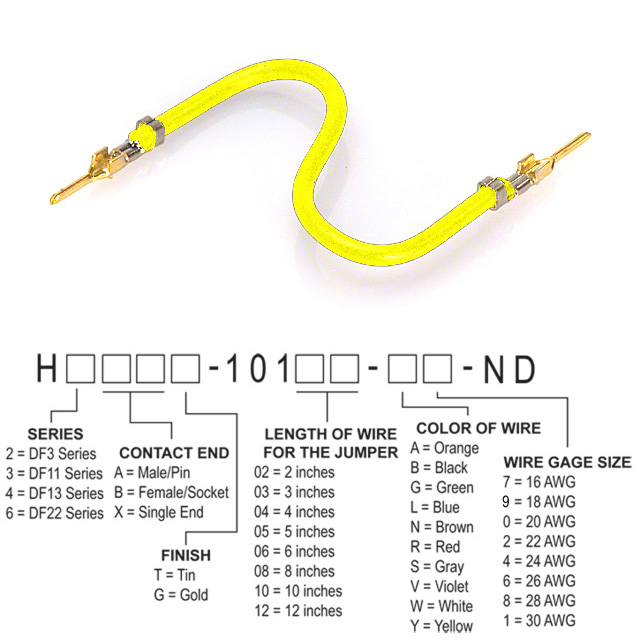

Yellow 26 AWG Jumper Lead Pin to Pin Gold 12.0" (304.8mm)
