H2AAG-10110-L8
ActiveHirose Electric USA, Inc.
JUMPER-H1503TR/A3048L/H1503TR10"
Deep-Dive with AI
Search across all available documentation for this part.
H2AAG-10110-L8
ActiveHirose Electric USA, Inc.
JUMPER-H1503TR/A3048L/H1503TR10"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | H2AAG-10110-L8 |
|---|---|
| Color | Blue |
| Contact Finish | Gold |
| Length | 254 mm |
| Length [x] | 10 in |
| Number of Conductors | 1 |
| Number of Rows | 1 |
| Wire Gauge | 28 AWG |
H2AAG Series
...
| Part | Contact Finish | Number of Conductors | Wire Gauge | Color | Length | Length [x] | Number of Rows | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Gold | 1 | 26 AWG | Yellow | 304.8 mm | 12 in | 1 | ||
Hirose Electric USA, Inc. | Gold | 1 | 24 AWG | Yellow | 5 in | 1 | 127 mm | ||
Hirose Electric USA, Inc. | Gold | 1 | 24 AWG | Blue | 76.2 mm | 3 in | 1 | ||
Hirose Electric USA, Inc. | Gold | 1 | 26 AWG | Black | 4 " | 1 | 101.6 mm | ||
Hirose Electric USA, Inc. | Gold | 1 | 24 AWG | White | 4 " | 1 | 101.6 mm | ||
Hirose Electric USA, Inc. | Gold | 1 | 24 AWG | White | 152.4 mm | 1 | 6 in | ||
Hirose Electric USA, Inc. | Gold | 1 | 26 AWG | Blue | 1 | ||||
Hirose Electric USA, Inc. | Gold | 1 | 28 AWG | Blue | 254 mm | 10 in | 1 | ||
Hirose Electric USA, Inc. | Gold | 1 | 26 AWG | White | 5 in | 1 | 127 mm | ||
Hirose Electric USA, Inc. | Gold | 1 | 24 AWG | Yellow | 203.2 mm | 1 | 8 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 1.10 | |
| 30 | $ 0.97 | |||
| 50 | $ 0.91 | |||
| 100 | $ 0.85 | |||
| 250 | $ 0.76 | |||
| 500 | $ 0.71 | |||
| 1000 | $ 0.66 | |||
| 2500 | $ 0.60 | |||
| 5000 | $ 0.56 | |||
Description
General part information
H2AAG Series

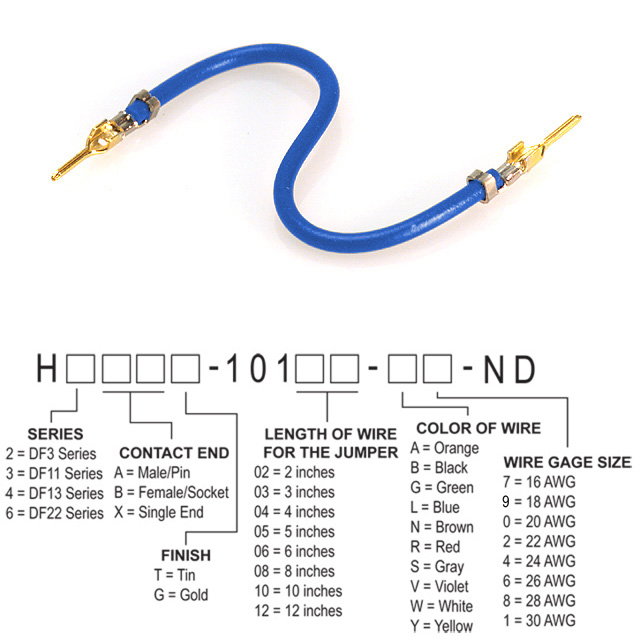

Blue 28 AWG Jumper Lead Pin to Pin Gold 10.0" (254.0mm)
