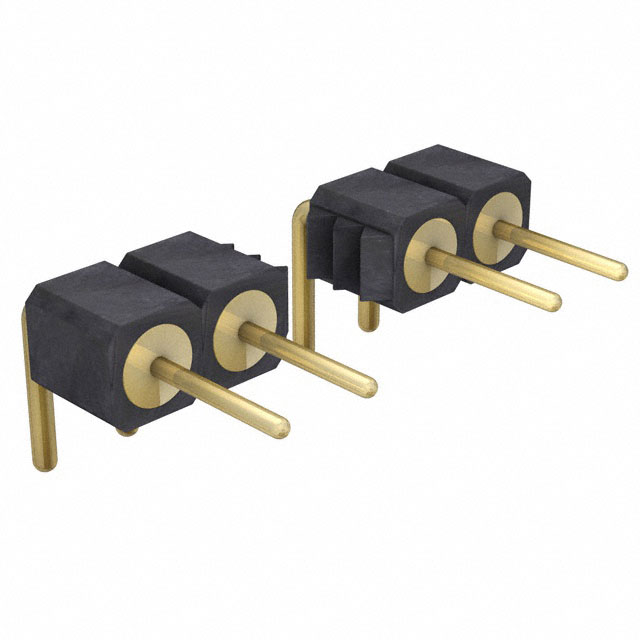

399-10-141-10-009101

Active

PRECI-DIP SA

3A RIGHT-ANGLE GOLD 150V 41P -55℃~+125℃ 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

399-10-141-10-009101

Active

PRECI-DIP SA

3A RIGHT-ANGLE GOLD 150V 41P -55℃~+125℃ 2.54MM BLACK BRASS SINGLE ROW PUSH-PULL,P=2.54MM PIN HEADERS ROHS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	399-10-141-10-009101

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	10 çin
Contact Finish Thickness - Post	0.25 çm
Contact Length - Mating	4 mm
Contact Length - Mating	0.157 in
Contact Length - Post	3.2 mm
Contact Length - Post [x]	0.126 in
Contact Material	Brass
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.1 in
Insulation Height	2.54 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	41
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Termination	Solder
Voltage Rating	150 VDC

399-10 Series

Part	Contact Length - Mating	Contact Length - Mating	Fastening Type	Number of Positions Loaded	Number of Positions	Shrouding	Insulation Color	Pitch - Mating	Pitch - Mating	Mounting Type	Contact Finish - Mating	Material Flammability Rating	Contact Finish - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Material	Voltage Rating	Contact Type	Number of Rows	Contact Length - Post	Contact Length - Post [x]	Connector Type	Contact Shape	Current Rating (Amps)	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Termination	Insulation Height	Insulation Height	Operating Temperature [Min]	Operating Temperature [Max]
PRECI-DIP SA 399-10-151-10-009101	4 mm	0.157 in	Push-Pull	All	51	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-104-10-009101	4 mm	0.157 in	Push-Pull	All	4	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-117-10-009101	4 mm	0.157 in	Push-Pull	All		Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-153-10-009101	4 mm	0.157 in	Push-Pull	All	53	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-133-10-009101	4 mm	0.157 in	Push-Pull	All	33	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-143-10-009101	4 mm	0.157 in	Push-Pull	All	43	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-110-10-009101	4 mm	0.157 in	Push-Pull	All	10	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-141-10-009101	4 mm	0.157 in	Push-Pull	All	41	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-159-10-009101	4 mm	0.157 in	Push-Pull	All	59	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C
PRECI-DIP SA 399-10-161-10-009101	4 mm	0.157 in	Push-Pull	All	61	Unshrouded	Black	0.1 in	2.54 mm	Through Hole Right Angle	Gold	UL94 V-0	Gold	10 çin	0.25 çm	Brass	150 VDC	Male Pin	1	3.2 mm	0.126 in	Header	Circular	3 A	10 çin	0.25 çm	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Solder	0.1 in	2.54 mm	-55 °C	125 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.19
LCSC	Piece	1	$ 19.65
		200	$ 7.84
		500	$ 7.58
		1000	$ 7.45

Description

General part information

399-10 Series

Connector Header Through Hole, Right Angle 41 position 0.100" (2.54mm)
