R30-6701194

Active

Harwin Inc.

SPACER, ROUND, NYLON 6.6, 11MM ROHS COMPLIANT: YES

Search across all available documentation for this part.

Active

Harwin Inc.

SPACER, ROUND, NYLON 6.6, 11MM ROHS COMPLIANT: YES

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Color	Gender	Material	Type	Threaded/Unthreaded	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Screw, Thread Size	Length - Overall	Length - Overall	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-6700994	5 mm	0.197 in	0.354 in	9 mm	0.354 in	9 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6702094	5 mm	0.197 in	0.787 "	20 mm	0.787 in	20 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700794	5 mm	0.197 in	0.276 in	7 mm	0.276 in	7 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6701194	5 mm	0.197 in	0.433 in	11 mm	0.433 in	11 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700394	5 mm	0.197 in			0.118 in	3 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3	0.118 "	3 mm
Harwin Inc. R30-6700594	5 mm	0.197 in	0.197 "	5 mm	0.197 in	5 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6701094	5 mm	0.197 in	0.394 "	10 mm	0.394 in	10 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700494	5 mm	0.197 in	0.157 in	4 mm	0.157 in	4 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6701294	5 mm	0.197 in	0.472 in	12 mm	0.472 in	12 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700894	5 mm	0.197 in	0.315 in	8 mm			White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3			0.315 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

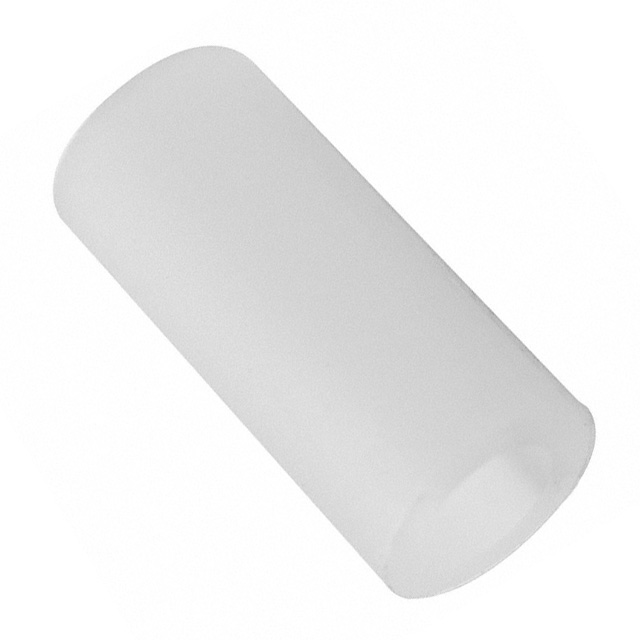

Round Spacer Unthreaded M3 Nylon 0.433" (11.00mm) White
