R30-6702094

Active

Harwin Inc.

ROUND SPACER M3 NYLON 20MM

Search across all available documentation for this part.

Active

Harwin Inc.

ROUND SPACER M3 NYLON 20MM

Technical Specifications

Parameters and characteristics for this part

Part	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Length - Overall [x]	Length - Overall [x]	Between Board Height	Between Board Height	Color	Gender	Material	Type	Threaded/Unthreaded	Diameter - Inside [diameter]	Diameter - Inside [diameter]	Screw, Thread Size	Length - Overall	Length - Overall	Between Board Height [z]	Between Board Height [z]
Harwin Inc. R30-6700994	5 mm	0.197 in	0.354 in	9 mm	0.354 in	9 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6702094	5 mm	0.197 in	0.787 "	20 mm	0.787 in	20 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700794	5 mm	0.197 in	0.276 in	7 mm	0.276 in	7 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6701194	5 mm	0.197 in	0.433 in	11 mm	0.433 in	11 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700394	5 mm	0.197 in			0.118 in	3 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3	0.118 "	3 mm
Harwin Inc. R30-6700594	5 mm	0.197 in	0.197 "	5 mm	0.197 in	5 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6701094	5 mm	0.197 in	0.394 "	10 mm	0.394 in	10 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700494	5 mm	0.197 in	0.157 in	4 mm	0.157 in	4 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6701294	5 mm	0.197 in	0.472 in	12 mm	0.472 in	12 mm	White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3
Harwin Inc. R30-6700894	5 mm	0.197 in	0.315 in	8 mm			White	Female	Nylon	Round Spacer	Unthreaded	0.126 in	3.2 mm	M3			0.315 in	8 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

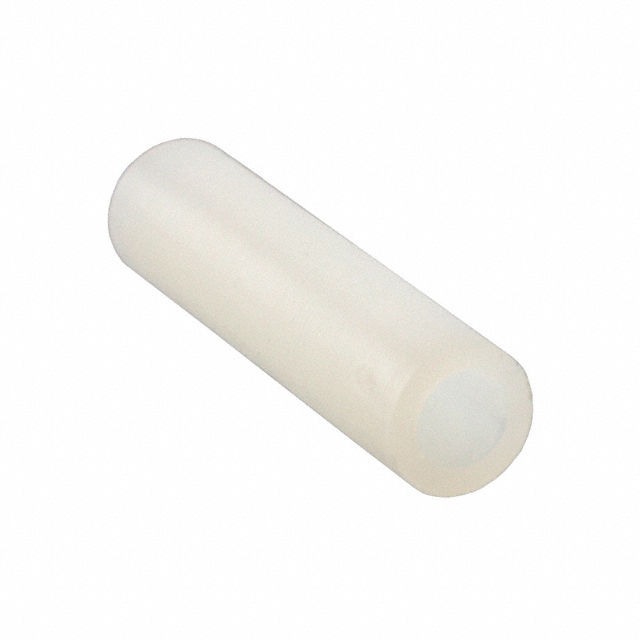

Round Spacer Unthreaded M3 Nylon 0.787" (20.00mm) White

Technical documentation and resources
