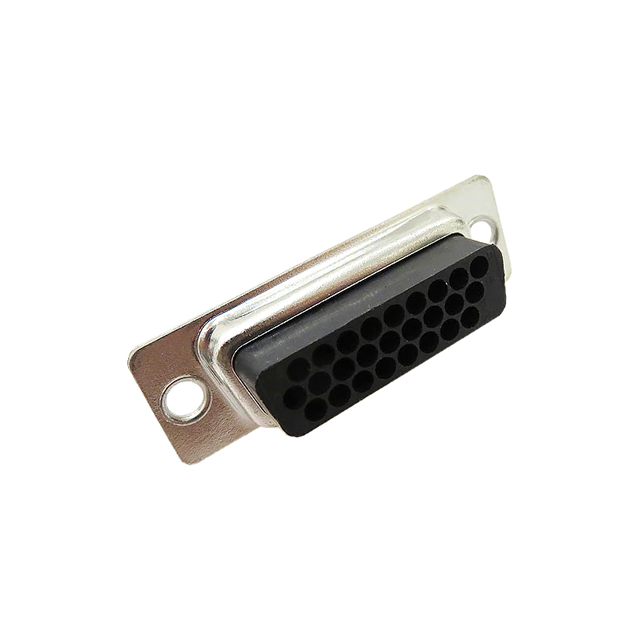

HDT26-SR

Active

Adam Tech

CONN D-SUB HD HOUSING RCPT 26POS

Search across all available documentation for this part.

Active

Adam Tech

CONN D-SUB HD HOUSING RCPT 26POS

Technical Specifications

Parameters and characteristics for this part

Specification	HDT26-SR

Color	Black
Connector Style	High Density, D-Sub
Connector Type	Receptacle, Female Sockets
Dielectric Material	Polybutylene Terephthalate (PBT), Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Mounting Type	Free Hanging (In-Line)
Number of Positions	26
Shell Size, Connector Layout	2
Shell Size, Connector Layout	(DA, A) High Density

Part	Number of Positions	Connector Style	Dielectric Material	Number of Rows	Voltage Rating	Material Flammability Rating	Contact Material	Current Rating (Amps)	Shell Size, Connector Layout	Shell Size, Connector Layout	Color	Connector Type	Contact Finish	Flange Feature	Mounting Type	Features	Contact Finish Thickness	Termination
Adam Tech HDT26-SD	26	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	250 VAC	UL94 V-0	Copper Alloy	3 A	2	(DA A) High Density	Black	Receptacle Female Sockets	Gold	Housing/Shell (Unthreaded)	Free Hanging (In-Line)
Adam Tech HDT26-PD	26	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	250 VAC	UL94 V-0	Copper Alloy	3 A	2	(DA A) High Density	Black	Male Pins Plug	Gold	Housing/Shell (Unthreaded)	Free Hanging (In-Line)	Grounding Indents
Adam Tech HDT26-SR	26	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled						2	(DA A) High Density	Black	Receptacle Female Sockets		Housing/Shell (Unthreaded)	Free Hanging (In-Line)
Adam Tech HDT26-ST	26	D-Sub High Density	Polybutylene Terephthalate (PBT) Glass Filled	3	250 VAC	UL94 V-0	Copper Alloy	3 A	2	(DA A) High Density	Black	Receptacle Female Sockets	Gold	Housing/Shell (Unthreaded)	Through Hole		Flash	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	150	$ 2.03
