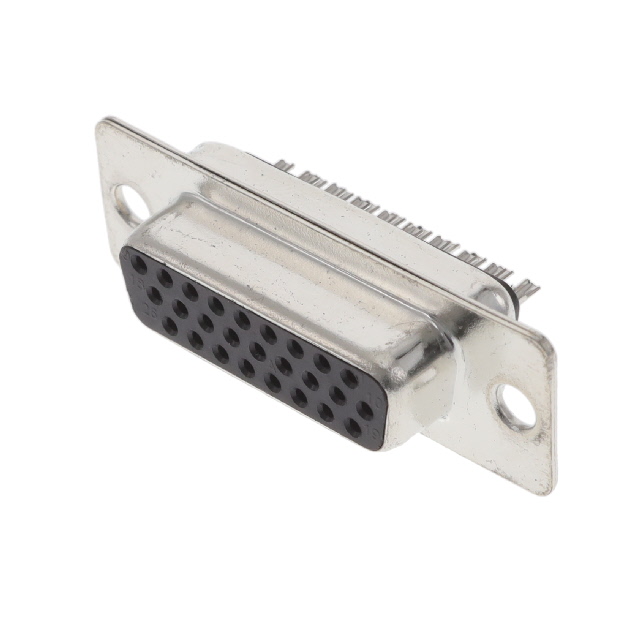

HDT26-SD
ActiveAdam Tech
CONN D-SUB HD RCPT 26P SLDR CUP
Deep-Dive with AI
Search across all available documentation for this part.
HDT26-SD
ActiveAdam Tech
CONN D-SUB HD RCPT 26P SLDR CUP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HDT26-SD |
|---|---|
| Color | Black |
| Connector Style | High Density, D-Sub |
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 3 A |
| Dielectric Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Flange Feature | Housing/Shell (Unthreaded) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 26 |
| Number of Rows | 3 |
| Shell Size, Connector Layout | 2 |
| Shell Size, Connector Layout | (DA, A) High Density |
| Voltage Rating | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.78 | |
| 10 | $ 1.36 | |||
| 25 | $ 1.22 | |||
| 40 | $ 1.16 | |||
| 80 | $ 1.07 | |||
| 230 | $ 0.95 | |||
| 440 | $ 0.89 | |||
| 945 | $ 0.82 | |||
| 2400 | $ 0.75 | |||
Description
General part information
HDT26 Series
26 Position D-Sub, High Density Receptacle, Female Sockets Connector
