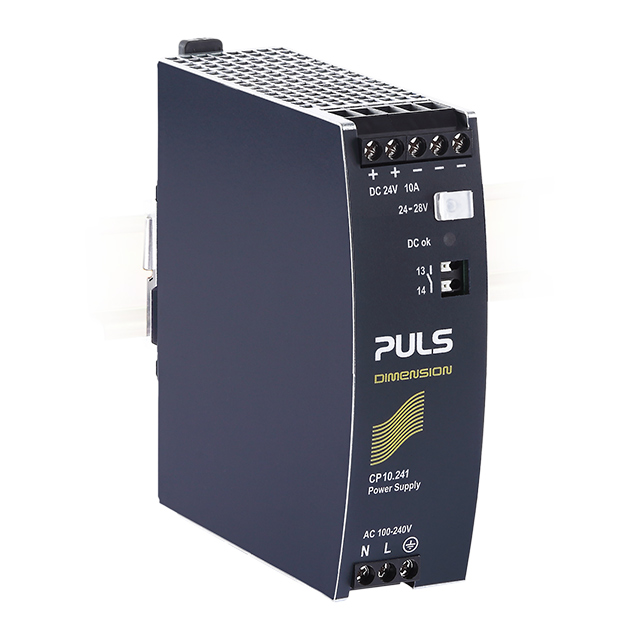

CP10.241
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 240W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CP10.241
ActivePULS, LP
AC/DC DIN RAIL SUPPLY 24V 240W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CP10.241 |
|---|---|
| AC Voltage - Input [Max] | 264 VAC |
| AC Voltage - Input [Min] | 85 VAC |
| Applications | ITE (Commercial), Hazardous Locations |
| Approval Agency | UL, IEC, DNV GL, EAC, ATEX, IECEx, ABS |
| Current - Output (Max) [Max] | 10 A |
| Efficiency | 95.2 % |
| Features | PFC, Adjustable Output, Universal Input |
| Input Type | AC |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Power (Watts) | 240 W |
| Size / Dimension [x] | 4.61 " |
| Size / Dimension [x] | 117 mm |
| Size / Dimension [y] | 1.54 " |
| Size / Dimension [y] | 39 mm |
| Size / Dimension [z] | 4.88 " |
| Size / Dimension [z] | 124 mm |
| Standard Number | 61010-2-201, 60950-1, 508, Class I Div 2 |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 24 V |
CP10 Series
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Features | Power (Watts) | Approval Agency | Number of Outputs | Voltage - Output 1 | Standard Number | AC Voltage - Input [Min] | AC Voltage - Input [Max] | Input Type | Voltage - Isolation | Efficiency | Current - Output (Max) [Max] | Applications | DC Voltage - Input (Min) [Min] | DC Voltage - Input (Max) [Max] | DC Voltage - Input (Max) [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output IP20 Load Sharing PFC Universal Input | 240 W | CE cULus EAC | 1 | 24 V | 508 60950-1 61010-1 62368-1 ATEX | 85 VAC | 264 VAC | AC | 500 V | 94.7 % | 10 A | Hazardous Locations Industrial ITE (Commercial) Laboratory | |||
PULS, LP | -10 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 240 W | ABS ATEX DNV GL EAC IEC IECEx UL | 1 | 24 V | 508 60950-1 61010-2-201 Class I Div 2 | 85 VAC | 264 VAC | AC | 3000 V | 95.2 % | 10 A | Hazardous Locations ITE (Commercial) | |||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 240 W | ABS ATEX DNV GL EAC IEC IECEx UL | 1 | 24 V | 508 60950-1 61010-2-201 Class I Div 2 | 85 VAC | 264 VAC | AC | 3000 V | 95.2 % | 10 A | Hazardous Locations ITE (Commercial) | |||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 240 W | ABS ATEX CSA DNV GL EAC IEC IECEx UL | 1 | 36 V | 508 60950-1 61010-2-201 Class I Div 2 | 100 VAC | 240 VAC | AC | 3000 V | 95.1 % | 6.7 A | Hazardous Locations ITE (Commercial) | |||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 240 W | ABS ATEX DNV GL EAC IEC IECEx UL | 1 | 48 V | 508 60950-1 61010-2-201 Class I Div 2 | 90 VAC | 264 VAC | AC | 3000 V | 95.5 % | 5.4 A | Hazardous Locations ITE (Commercial) | |||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 192 W | ABS ATEX CSA DNV GL EAC IEC IECEx UL | 1 | 12 V | 508 60950-1 61010-2-201 Class I Div 2 | 85 VAC | 264 VAC | AC | 3000 V | 94.3 % | 16 A | Hazardous Locations ITE (Commercial) | |||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output IP20 Load Sharing PFC Universal Input | 240 W | CE cULus EAC | 1 | 24 V | 508 60950-1 61010-1 62368-1 ATEX | 85 VAC | 264 VAC | AC | 500 V | 94.7 % | 10 A | Hazardous Locations Industrial ITE (Commercial) Laboratory | |||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 240 W | ATEX DNV GL EAC IEC IECEx UL | 1 | 24 V | 508 60950-1 61010-2-201 Class I Div 2 | 85 VAC | 264 VAC | AC or DC | 95.2 % | 10 A | Hazardous Locations ITE (Commercial) | 110 V | 150 V | ||
PULS, LP | -25 °C | 70 °C | 1.54 " | 39 mm | 4.88 " | 4.61 " | 117 mm | 124 mm | Adjustable Output PFC Universal Input | 240 W | CB CE cULus EAC UL | 1 | 24 V | 60950-1 61010-1 62368-1 ATEX IECEx | 85 VAC | 264 VAC | AC or DC | 500 V | 94.7 % | 10 A | Hazardous Locations ITE (Commercial) Laboratory | 88 V | 180 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 297.00 | |
Description
General part information
CP10 Series
AC/DC DIN RAIL SUPPLY 24V 240W
Documents
Technical documentation and resources
