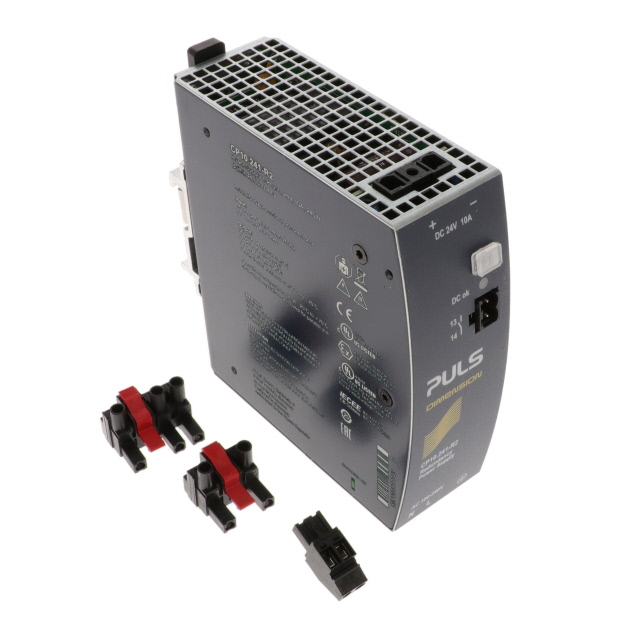

CP10.241-R2

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CP10.241-R2

Active

PULS, LP

AC/DC DIN RAIL SUPPLY 24V 240W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CP10.241-R2

AC Voltage - Input [Max]	264 VAC
AC Voltage - Input [Min]	85 VAC
Applications	ITE (Commercial), Laboratory, Industrial, Hazardous Locations
Approval Agency	cULus, EAC, CE
Current - Output (Max) [Max]	10 A
Efficiency	94.7 %
Features	PFC, Universal Input, Load Sharing, Adjustable Output, IP20
Input Type	AC
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-25 °C
Power (Watts)	240 W
Size / Dimension [x]	4.61 "
Size / Dimension [x]	117 mm
Size / Dimension [y]	1.54 "
Size / Dimension [y]	39 mm
Size / Dimension [z]	4.88 "
Size / Dimension [z]	124 mm
Standard Number	ATEX, 508, 61010-1, 60950-1, 62368-1
Voltage - Isolation	500 V
Voltage - Output 1	24 V

CP10 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Features	Power (Watts)	Approval Agency	Number of Outputs	Voltage - Output 1	Standard Number	AC Voltage - Input [Min]	AC Voltage - Input [Max]	Input Type	Voltage - Isolation	Efficiency	Current - Output (Max) [Max]	Applications	DC Voltage - Input (Min) [Min]	DC Voltage - Input (Max) [Max]	DC Voltage - Input (Max) [custom]
PULS, LP CP10.241-R2	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output IP20 Load Sharing PFC Universal Input	240 W	CE cULus EAC	1	24 V	508 60950-1 61010-1 62368-1 ATEX	85 VAC	264 VAC	AC	500 V	94.7 %	10 A	Hazardous Locations Industrial ITE (Commercial) Laboratory
PULS, LP CP10.242	-10 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	240 W	ABS ATEX DNV GL EAC IEC IECEx UL	1	24 V	508 60950-1 61010-2-201 Class I Div 2	85 VAC	264 VAC	AC	3000 V	95.2 %	10 A	Hazardous Locations ITE (Commercial)
PULS, LP CP10.241	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	240 W	ABS ATEX DNV GL EAC IEC IECEx UL	1	24 V	508 60950-1 61010-2-201 Class I Div 2	85 VAC	264 VAC	AC	3000 V	95.2 %	10 A	Hazardous Locations ITE (Commercial)
PULS, LP CP10.361	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	240 W	ABS ATEX CSA DNV GL EAC IEC IECEx UL	1	36 V	508 60950-1 61010-2-201 Class I Div 2	100 VAC	240 VAC	AC	3000 V	95.1 %	6.7 A	Hazardous Locations ITE (Commercial)
PULS, LP CP10.481	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	240 W	ABS ATEX DNV GL EAC IEC IECEx UL	1	48 V	508 60950-1 61010-2-201 Class I Div 2	90 VAC	264 VAC	AC	3000 V	95.5 %	5.4 A	Hazardous Locations ITE (Commercial)
PULS, LP CP10.121	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	192 W	ABS ATEX CSA DNV GL EAC IEC IECEx UL	1	12 V	508 60950-1 61010-2-201 Class I Div 2	85 VAC	264 VAC	AC	3000 V	94.3 %	16 A	Hazardous Locations ITE (Commercial)
PULS, LP CP10.241-R1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output IP20 Load Sharing PFC Universal Input	240 W	CE cULus EAC	1	24 V	508 60950-1 61010-1 62368-1 ATEX	85 VAC	264 VAC	AC	500 V	94.7 %	10 A	Hazardous Locations Industrial ITE (Commercial) Laboratory
PULS, LP CP10.241-C1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	240 W	ATEX DNV GL EAC IEC IECEx UL	1	24 V	508 60950-1 61010-2-201 Class I Div 2	85 VAC	264 VAC	AC or DC		95.2 %	10 A	Hazardous Locations ITE (Commercial)	110 V	150 V
PULS, LP CP10.241-R2-C1	-25 °C	70 °C	1.54 "	39 mm	4.88 "	4.61 "	117 mm	124 mm	Adjustable Output PFC Universal Input	240 W	CB CE cULus EAC UL	1	24 V	60950-1 61010-1 62368-1 ATEX IECEx	85 VAC	264 VAC	AC or DC	500 V	94.7 %	10 A	Hazardous Locations ITE (Commercial) Laboratory	88 V		180 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 387.00

Description

General part information

CP10 Series

AC/DC DIN RAIL SUPPLY 24V 240W
