TMC6100-EVAL-KIT

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC6100 + TMC4671

Search across all available documentation for this part.

Active

Analog Devices Inc./Maxim Integrated

EVAL KIT FOR TMC6100 + TMC4671

Technical Specifications

Parameters and characteristics for this part

Part	Gate Type	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - Peak Output (Source, Sink) [custom]	Current - Peak Output (Source, Sink) [custom]	Channel Type	High Side Voltage - Max (Bootstrap) [Max]	Driven Configuration	Number of Drivers	Operating Temperature [Min]	Operating Temperature [Max]	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Contents	Supplied Contents	Primary Attributes	Utilized IC / Part	Function	Type
Analog Devices Inc./Maxim Integrated TMC6100-LA-T	N-Channel MOSFET	Surface Mount	60 V	8 V	500 mA	500 mA	3-Phase	85 V	Half-Bridge	3	-40 °C	125 ¯C	37-QFN-EP (7x7)	20 ns	20 ns
Analog Devices Inc./Maxim Integrated TMC6100-EVAL																Board(s)	Board(s)	Motors (BLDC PMSM)	TMC6100	Motor Controller/Driver	Power Management
Analog Devices Inc./Maxim Integrated TMC6100-EVAL-KIT																Board(s)	Board(s)	Motors (BLDC PMSM)	TMC4671 TMC6100	Motor Controller/Driver	Power Management

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 229.72

General part information

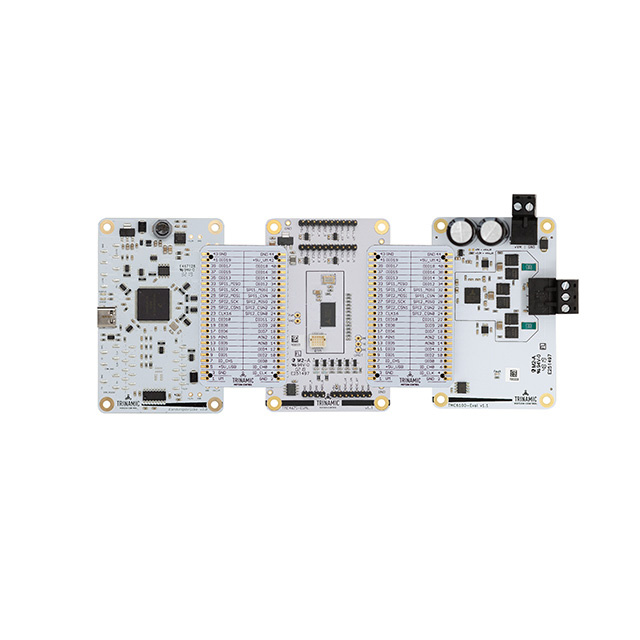

TMC4671, TMC6100 Motor Controller/Driver Power Management Evaluation Board
