TMC6100-LA-T
ActiveAnalog Devices Inc./Maxim Integrated

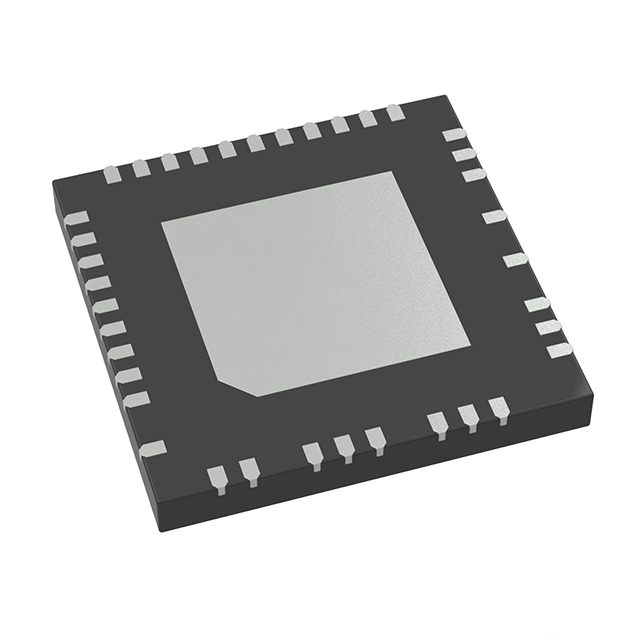

IC GATE DRVR HALF-BRIDGE 37QFN
Deep-Dive with AI
Search across all available documentation for this part.
TMC6100-LA-T
ActiveAnalog Devices Inc./Maxim Integrated
IC GATE DRVR HALF-BRIDGE 37QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TMC6100-LA-T |
|---|---|
| Channel Type | 3-Phase |
| Current - Peak Output (Source, Sink) [custom] | 500 mA |
| Current - Peak Output (Source, Sink) [custom] | 500 mA |
| Driven Configuration | Half-Bridge |
| Gate Type | N-Channel MOSFET |
| High Side Voltage - Max (Bootstrap) [Max] | 85 V |
| Mounting Type | Surface Mount |
| Number of Drivers | 3 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Rise / Fall Time (Typ) [custom] | 20 ns |
| Rise / Fall Time (Typ) [custom] | 20 ns |
| Supplier Device Package | 37-QFN-EP (7x7) |
| Voltage - Supply [Max] | 60 V |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 5.72 | |
| 10 | $ 3.84 | |||
| 25 | $ 3.36 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.55 | |||
| 500 | $ 2.39 | |||
| 1000 | $ 2.25 | |||
| Digi-Reel® | 1 | $ 5.72 | ||
| 10 | $ 3.84 | |||
| 25 | $ 3.36 | |||
| 100 | $ 2.81 | |||
| 250 | $ 2.55 | |||
| 500 | $ 2.39 | |||
| 1000 | $ 2.25 | |||
| Tape & Reel (TR) | 2000 | $ 2.14 | ||
| 4000 | $ 2.06 | |||
Description
General part information
TMC6100 Series
Half-Bridge Gate Driver IC 37-QFN-EP (7x7)
