GA100-015WD

Obsolete

TE Connectivity Measurement Specialties

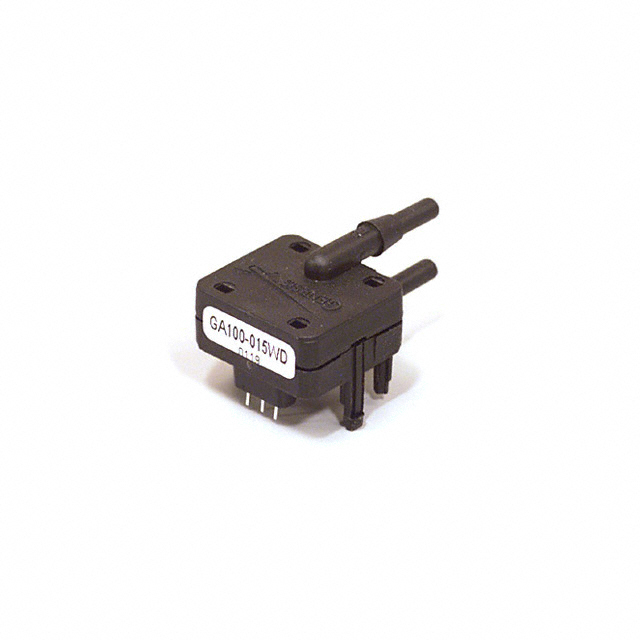

SENSOR 0.54PSID 0.13" 4.5V

Search across all available documentation for this part.

Obsolete

TE Connectivity Measurement Specialties

SENSOR 0.54PSID 0.13" 4.5V

Technical Specifications

Parameters and characteristics for this part

Specification	GA100-015WD

Accuracy	0.5 %
Applications	Board Mount
Features	Temperature Compensated, Amplified Output
Maximum Pressure [Max]	10 PSI
Maximum Pressure [Max]	68.95 kPa
Mounting Type	Through Hole
Operating Pressure	3.74 kPa
Operating Pressure	0.54 PSI
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-25 °C
Output [Max]	4.5 V
Output [Min]	0.5 V
Output Type	Analog Voltage
Package / Case	3-SIP Module
Port Size	Dual, Male, Tube
Port Size	3.23 mm
Port Size	0.13 "
Port Style	Barbed
Pressure Type	Differential
Termination Style	PC Pin
Voltage - Supply [Max]	5.25 V
Voltage - Supply [Min]	4.75 V

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Resistance in Ohms @ 25°C	Length - Lead Wire [x]	Length - Lead Wire [x]	Package / Case	B Value Tolerance	Resistance Tolerance	Operating Pressure	Operating Pressure	Applications	Output Type	Accuracy	Port Size	Port Size	Port Size	Termination Style	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Port Style
TE Connectivity Measurement Specialties GA100K6MCD1	Free Hanging	125 °C	-40 °C	100k	149 mm	5.87 in	Bead	0.5 %
TE Connectivity Measurement Specialties GA100K6A1IA	Free Hanging	125 °C	-40 °C	100k			Bead	0.5 %	0.1 °C
TE Connectivity Measurement Specialties GA100K6A1B	Free Hanging	125 °C	-40 °C	100k			Bead	0.5 %
TE Connectivity Measurement Specialties GA100-015WD	Through Hole	80 C	-25 °C				3-SIP Module			3.74 kPa	0.54 PSI	Board Mount	Analog Voltage	0.5 %	Dual Male Tube	3.23 mm	0.13 "	PC Pin	Amplified Output Temperature Compensated	10 PSI	68.95 kPa	0.5 V	4.5 V	4.75 V	5.25 V	Differential	Barbed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Pressure Sensor 0.54PSI (3.74kPa) Differential Male - 0.13" (3.23mm) Tube, Dual 0.5 V ~ 4.5 V 3-SIP Module
