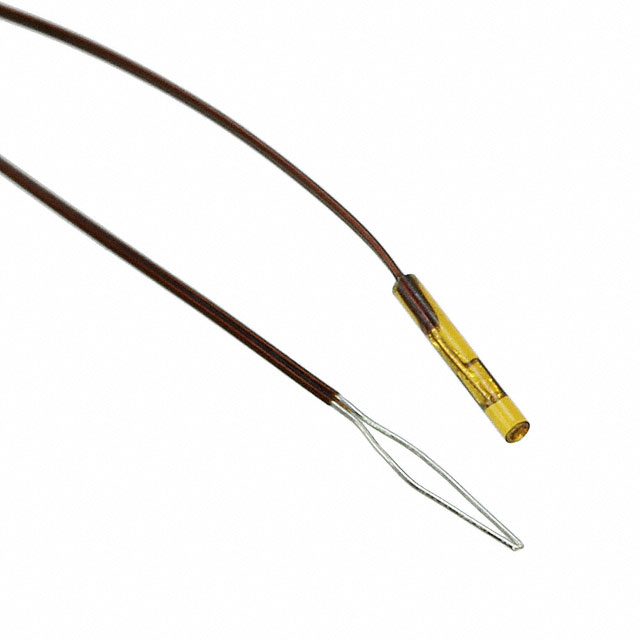

GA100K6MCD1

Active

TE Connectivity Measurement Specialties

THERM NTC 100KOHM 4261K BEAD

Search across all available documentation for this part.

Active

TE Connectivity Measurement Specialties

THERM NTC 100KOHM 4261K BEAD

Technical Specifications

Parameters and characteristics for this part

Part	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Resistance in Ohms @ 25°C	Length - Lead Wire [x]	Length - Lead Wire [x]	Package / Case	B Value Tolerance	Resistance Tolerance	Operating Pressure	Operating Pressure	Applications	Output Type	Accuracy	Port Size	Port Size	Port Size	Termination Style	Features	Maximum Pressure [Max]	Maximum Pressure [Max]	Output [Min]	Output [Max]	Voltage - Supply [Min]	Voltage - Supply [Max]	Pressure Type	Port Style
TE Connectivity Measurement Specialties GA100K6MCD1	Free Hanging	125 °C	-40 °C	100k	149 mm	5.87 in	Bead	0.5 %
TE Connectivity Measurement Specialties GA100K6A1IA	Free Hanging	125 °C	-40 °C	100k			Bead	0.5 %	0.1 °C
TE Connectivity Measurement Specialties GA100K6A1B	Free Hanging	125 °C	-40 °C	100k			Bead	0.5 %
TE Connectivity Measurement Specialties GA100-015WD	Through Hole	80 C	-25 °C				3-SIP Module			3.74 kPa	0.54 PSI	Board Mount	Analog Voltage	0.5 %	Dual Male Tube	3.23 mm	0.13 "	PC Pin	Amplified Output Temperature Compensated	10 PSI	68.95 kPa	0.5 V	4.5 V	4.75 V	5.25 V	Differential	Barbed

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

NTC Thermistor 100k Bead

Technical documentation and resources

No documents available
