00583970

Active

Menbers

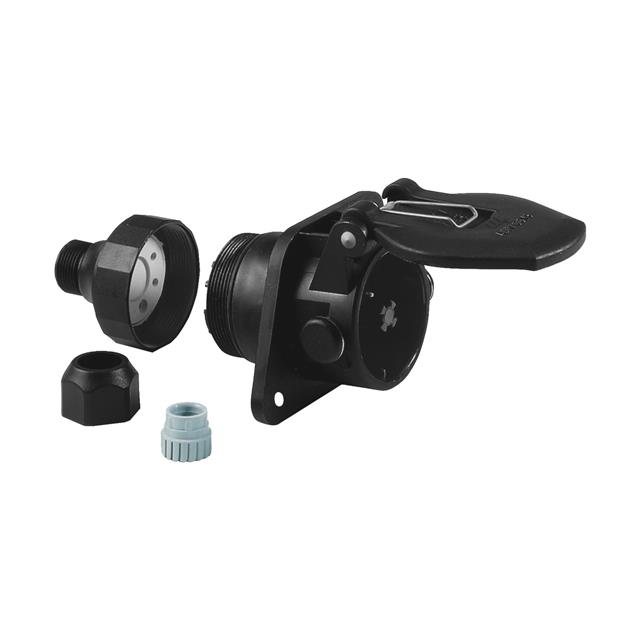

CONN RCPT MALE 7POS SCREW

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

00583970

Active

Menbers

CONN RCPT MALE 7POS SCREW

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	00583970

Applications	Industrial, Automotive
Backshell Material, Plating	Plastic
Color	Black
Connector Type	Receptacle, Male Pins
Fastening Type	Bayonet Lock
Features	Cap (Cover), Backshell
Insert Material	Plastic
Mounting Feature	Flange
Mounting Type	Free Hanging (In-Line), Panel Mount
Number of Positions	7
Orientation	Keyed
Primary Material	Plastic
Shell Material	Plastic
Shielding	Unshielded
Termination	Screw
Voltage Rating	24 VDC

- Series

Part	2nd Connector Number of Positions	Shielding	2nd Connector Type	1st Connector Number of Positions Loaded	Assembly Configuration	2nd Connector Mounting Type	1st Connector Mounting Type	1st Connector Number of Positions	Color	1st Connector Gender	2nd Connector Gender	Usage	2nd Connector Number of Positions Loaded	Cable Type	1st Connector Type	Ingress Protection	Cable Material	Insert Material	Number of Positions	Voltage Rating	Fastening Type	Orientation	Termination	Applications	Connector Type	Primary Material	Features	Mounting Feature	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating	Shell Material	Mounting Type	2nd Connector Type	Contact Material	Contact Finish - Mating	For Use With/Related Products	Accessory Type
Menbers 00521135	15	Unshielded	Plug	All	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	15	Green	Female Sockets	Female Sockets	Industrial Environments	All	Round Coiled	Plug	IP65 - Dust Tight Water Resistant	Polyurethane (PUR)
Menbers 00585700		Unshielded							Black									Plastic	7	24 VDC	Bayonet Lock	Keyed	Crimp	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange	15.5 mm	0.61 in	Plastic	Plastic	Free Hanging (In-Line) Panel Mount
Menbers 00250962
Menbers 00550770		Unshielded	Plug	All	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	7	Black	Female Sockets	Female Sockets	Industrial Environments	All	Round Coiled	Plug	IP65 - Dust Tight Water Resistant	Polyurethane (PUR)
Menbers 00586800		Unshielded							Black									Plastic		24 VDC	Bayonet Lock	Keyed	Crimp	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange	15.5 mm	0.61 in	Plastic	Plastic	Free Hanging (In-Line) Panel Mount Right Angle
Menbers 00555770	15	Unshielded	Plug	All	Standard	Free Hanging (In-Line)	Free Hanging (In-Line)	15	Black	Female Sockets	Female Sockets (2)	Industrial Environments	All	Round Coiled	Plug	IP65 - Dust Tight Water Resistant	Polyurethane (PUR)																	2
Menbers 00583970		Unshielded							Black									Plastic	7	24 VDC	Bayonet Lock	Keyed	Screw	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange			Plastic	Plastic	Free Hanging (In-Line) Panel Mount
Menbers 00591100		Unshielded							Silver										7	24 VDC	Push-Pull	Keyed	Solder Tabs	Automotive Industrial	Female Sockets Male Pins Plug	Metal	Backshell Strain Relief				Aluminum	Aluminum	Free Hanging (In-Line)		Brass	Nickel
Menbers 00586870		Unshielded							Black									Plastic		24 VDC	Bayonet Lock	Keyed	Crimp	Automotive Industrial	Male Pins Receptacle	Plastic	Backshell Cap (Cover)	Flange			Plastic	Plastic	Free Hanging (In-Line) Panel Mount Right Angle
Menbers 08075360																																					Batteries	Disconnect Switch

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 50.60
		10	$ 39.18
		25	$ 35.56
		50	$ 33.12
		100	$ 30.90
		250	$ 28.30

Description

General part information

- Series

7 Position Circular Connector Receptacle, Male Pins Screw

Documents

Technical documentation and resources
